CUSTOM WAVEGUIDE ASSEMBLIES
We provide custom waveguide assemblies for various frequency bands, including L-band, S-band, C-band, X-band, Ku-band, K-band, and Ka-band, up to very high millimeter W-band frequencies. Our assemblies are made from oxygen-free copper and are fully brazed and tested, featuring custom options like bendable or twistable waveguide sections and end flanges.
Our designs include rectangular and circular waveguides, such as couplers, horns, adapters, and more, tailored to your specific needs across multiple RF frequency ranges. We also offer drop-in replacements for waveguide assemblies at a lower cost, maintaining the same performance. Our team can work from detailed drawings or simple sketches to create and test a custom solution.
With strong in-house testing and quality control, we ensure low insertion loss and high power performance. We can also offer silver or gold plating to reduce microwave losses. If you need help designing and fabricating a custom waveguide assembly, we can assist with engineering, power handling, and other specifications, often fabricating components in-house for quicker delivery.
- S-band WR284 Hybrid FlexRigid Waveguide
- X-band WR90 Preformed-Bends-Flexible-Waveguide
- K-band Specialized Multi-bend Assemblies
Hybrid FlexRigid Waveguide
Dolph Microwave offers a standard product line of Hybrid FlexRigid Waveguide, which includes both E-bends and H-bends operate from 1.13 GHz to 110 GHz. And still it is available in sizes from WR-10 to WR-650.
Seamless flexible/non-twistable and flexible twistable core may be used in conjunction with rigid waveguide to produce hybrid assemblies. Many of these designs may be complex Multiple bends and twists, with the flexible section Included to eliminate vibration or misalignment.

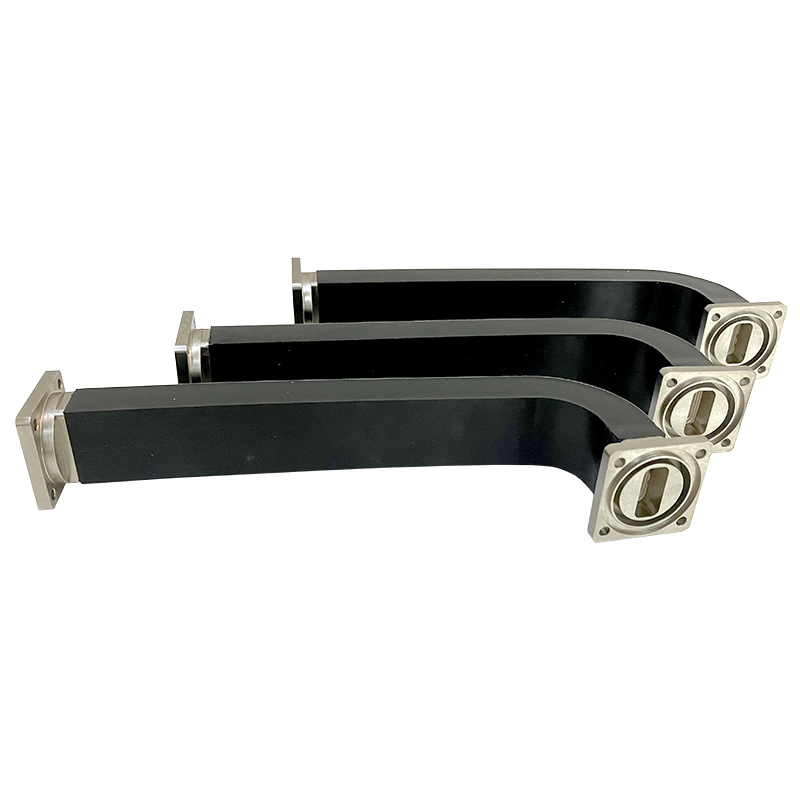

Preformed-Bends-Flexible-Waveguide
Dolph microwave manufactures a quality line of preformed bends flexible waveguides, specially designed to meet all of your requirements. The preformed bends flexible-twist waveguide is made from a helically wound waveguide core and additional mechanical support is offered from a variety of protective jackets.
Specialized Multi-bend Assemblies
Dolph Microwave offers a standard product line of waveguide multi-bends, which includes both E-bends and H-bends operate from 1.72 GHz to 110 GHz. and still it is available in sizes from WR-10 to WR-430.
In a short, all units are precisely bending to the desired angle. At the same time, maintaining a constant cross section to minimize energy reflection. Besides, this family of waveguide bends, also boast low loss, and VSWR as low as 1.06:1 and are available in both E-bends and H-bends configurations.
