Linear Circular Polarization Horn Antenna
A Linear Circular Polarization Horn Antenna is a versatile RF component designed to transmit or receive electromagnetic waves, capable of switching between linear and circular polarization. It offers broad bandwidth and high efficiency, making it ideal for a wide range of applications, including communications, radar, and electronic warfare.
Linear and Circular Polarization in One Horn Antenna Platform

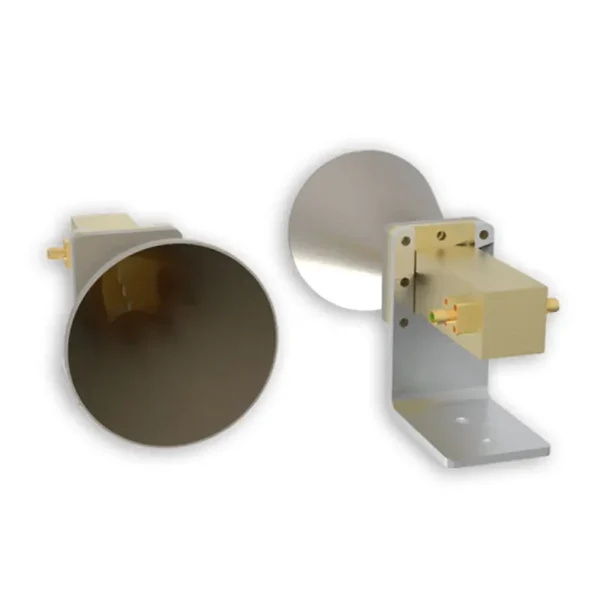

Dolph Microwave introduces its advanced Linear/Circular Polarization Horn Antenna, a high-performance RF component designed for versatility and efficiency in a wide array of applications. This antenna is capable of operating with both linear and circular polarization, making it exceptionally suitable for diverse communication, radar, and electronic warfare systems. Engineered with precision, it combines high gain with low return loss, ensuring superior signal quality and reliability.
Polarization, Gain, Interface and Mechanical Options
Versatile Polarization
- Polarization Modes: Supports both linear and circular polarization, allowing for flexible application in different electromagnetic environments.
High Gain
- Gain Levels: Offers gain options of 10, 15, 20dB, enhancing signal strength and reach for various operational demands.
Broad Waveguide Size Range
- Waveguide Compatibility: Ranges from WR2300 to WR10, accommodating a wide spectrum of frequency bands and system requirements.
Quality Materials
- Construction: Made from high-quality aluminum (Al) or copper (Cu), ensuring durability and optimal electromagnetic performance.
Diverse Connector Options
- Connector Types: Includes N, TNC, SMA, 2.92mm, and 3.5mm (F/M) among others, providing compatibility with a multitude of RF systems.
Customizable Flange Types
- Flange Designs: Available in cover, grooved, and choke types, catering to various mounting and system integration needs.
Select Polarization, Gain and RF Interface Together
A suitable configuration should be defined from the required polarization mode, waveguide size, gain, connector, material and flange type. These parameters affect system compatibility, installation and the final antenna configuration.
Define Polarization
Specify linear or circular polarization and state the required operating arrangement for the system.
Match the RF Band
Confirm the required waveguide size from WR2300 to WR10 and the operating frequency range.
Confirm Mechanical Interface
Select the connector, flange type, material and mounting arrangement required for integration.
Communication, Radar and RF Research Applications
The Dolph Microwave Linear/Circular Polarization Horn Antenna is crucial in several key sectors:
1. Communications
Communications: Ideal for broadband wireless communication systems requiring adaptable polarization.
2. Radar Systems
Radar Systems: Enhances radar performance with its ability to switch between polarization modes for different target detection scenarios.
3. Electronic Warfare
Electronic Warfare: Offers strategic advantages in signal jamming and interception tasks.
4. Satellite Communications
Satellite Communications: Suitable for ground station antennas where polarization flexibility improves link reliability.
5. Scientific Research
Scientific Research: Assists in electromagnetic field studies and antenna characterization projects.
Linear/Circular Polarization Horn Antenna Specifications
Here’s an example specification table for our Linear/Circular Polarization Horn Antenna:
| Specification | Detail |
|---|---|
| Waveguide Size | WR2300 to WR10 |
| Gain | 10, 15, 20dB |
| Polarization | Linear and Circular |
| Connector | N, TNC, SMA, 2.92mm, 3.5mm (F/M) |
| Material | Aluminum (Al), Copper (Cu) |
| Flange Type | Cover, Grooved, Choke |
Dolph Microwave’s Linear/Circular Polarization Horn Antenna represents the pinnacle of RF design and engineering. It embodies our commitment to providing high-quality, versatile solutions that meet the exacting demands of modern electromagnetic applications. Whether for standard or customized configurations, our antennas are tailored to deliver exceptional performance and reliability.
Configuration Support for Project-Specific Requirements
We understand that each project has unique requirements. Therefore, Dolph Microwave offers customization options for waveguide sizes, gain levels, connector types, and materials to perfectly match your specific application needs. Our team of experienced engineers is ready to assist you in selecting the right antenna configuration, ensuring optimal performance for your systems.
For more information or to discuss your antenna needs, feel free to contact us. Dolph Microwave is dedicated to advancing your projects with our cutting-edge RF solutions, driving forward your success in the competitive landscape of telecommunications and radar technology.
