Microwave Magnetron WG Launcher

A magnetron waveguide launcher couples microwave power from a specified magnetron into a waveguide line. Dolph lists 915 MHz and 2450 MHz industrial configurations with WR340, WR430 or WR975 interfaces. Selection starts with the magnetron model and output geometry, then the mounting pattern, flange, operating power and cooling arrangement.

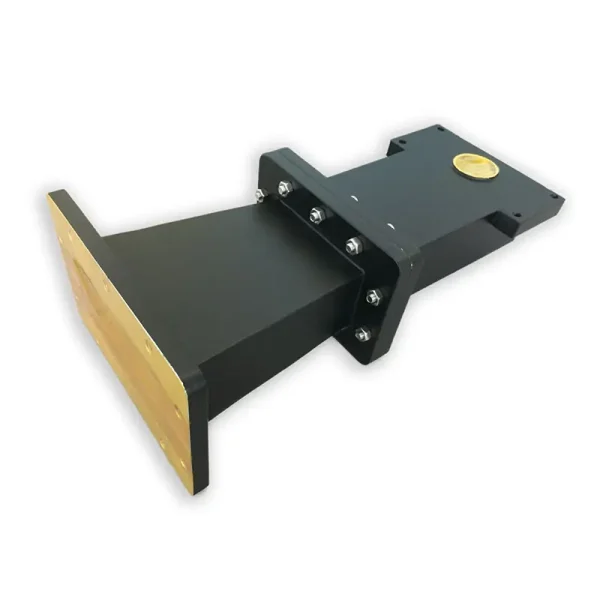

Dolph Microwave magnetron waveguide launcher for industrial microwave systems

Magnetron-to-Waveguide Interface Built Around Your System

Match the launcher to the actual magnetron output and mounting drawing. Shared mounting-hole spacing alone does not establish RF compatibility or power handling; include the magnetron datasheet and the waveguide-side interface.

Frequency
915 / 2450 MHz
Waveguide
WR340 / WR430 / WR975
Published Power
6KW / 10KW / up to 20KW CW
Supply
Standard / Custom

Published Product Specification

The family values below describe available options. Confirm the rating of the complete magnetron/launcher configuration; the 20 kW summary does not apply automatically to every magnetron listed in the mounting table.

Frequency Range915MHz, 2450MHz
Waveguide SizeWR340, WR430, WR975
Power Handling6KW, 10KW, up to 20KW CW
LifespanLong life expectancy
CustomizationStandard and Custom options

Match the Launcher to the Magnetron Interface

These mounting-hole references help identify the mechanical pattern. Confirm output-probe geometry, seating and the applicable magnetron revision before approving a replacement launcher.

Magnetrons Pin Hole(mm)
Panasonic: 2M210-M1, 2M167B-M11/M15/M10,
Samsung: OM75P31/S31,
Witol: 2M219K/G, 2M363K/G, 2M369K/G, 2M469K/G
115.2*34.8
LG: 2M290, 2M265114.3*47.6

Send These Details for Matching

Magnetron model or existing part number
Operating frequency and required CW power
WR size, flange type and mating interface
Drawing, datasheet, sketch or marked-up assembly image if available
Ask for Interface Review

2450 MHz WR340 Published Reference Models

Model WR Type Frequency (MHZ) Flange Type
DH-26MECL2450A01…WR3402450Cover
DH-26MECL2450A02…WR3402450Cover
CNC machining for precision microwave components at Dolph Microwave

Finish and Material

Inside FinishBody FinishMaterial
Iridite per MIL-C-5541Anticorrosion Black PaintedAl
Iridite per MIL-C-5541Anticorrosion Black PaintedAl
Quality inspection of microwave components at Dolph Microwave

Ordering Information

DH – 26 MECL 2450 A 01
DH
Dolph Microwave
26
Waveguide Type WR340
MECL
Waveguide Launcher
2450
Freq. 2450 MHz
A
Material Al
1
for Panasonic 2M210-M1…
2
for LG 2M290…

Built and Checked in Dolph Microwave’s Xi’an Factory

Dolph Microwave has manufactured microwave and waveguide hardware since 2001. Published capabilities include in-house machining, waveguide forming and bending, brazing, plating, assembly and RF testing.

ISO 9001:2015
Published quality-system certification.
Factory Since 2001
Long-term waveguide and microwave production.
100 GHz RF Testing
Published in-house measurement capability.
One-Year Warranty
Material and workmanship defects, subject to terms.
View Manufacturing Capability

Published LG 2M290 Configuration

The LG 2M290 reference is a specific launcher-plus-taper assembly rated at 3 kW CW in the published data. Its 2450±50 MHz, VSWR and WR340/WR430 values apply to that complete build, not every launcher in this family.

ModelDH-2226WA150PPA+DH-26MECL100A10
Frequency Range2450±50 MHz
VSWR (Max.)≤1.05:1
Handling Power3 KW, CW
Waveguide TypeWR340/WR430
FlangeFDP26/FDP22
MaterialAluminum
Inside FinishChromate conversion / Silver plating
Outside FinishAnticorrosion black paint

Need the Same Interface or a Different Magnetron?

Send the magnetron model and the waveguide side you need. Dolph Microwave can review a published build, a replacement part or a custom launcher around your drawing.

View the LG 2M290 Published Build

Complete the High-Power Microwave Line

The launcher is one interface in the line. When the same system needs load matching, reflected-power protection, power absorption or a pressurized waveguide section, use components built around the same frequency, WR size and flange plan.

Need a sealed or pressurized waveguide section?
Match the launcher with a Waveguide Pressure Window using the same WR and flange plan.
Quote the Complete Line
Dolph Microwave machining industrial microwave components in Xi'an

Confirm Power and Flange Before Release

For a replacement or new build, confirm both the electrical limit and the mechanical mating interface. This avoids selecting by WR size alone.

Send Drawing for Technical Quote

Factory Credentials and Warranty

For supplier qualification, request the current quality certificate and any applicable material or surface-treatment declaration for the quoted configuration. The published warranty covers defective material and workmanship for one year from delivery, subject to its terms.

Dolph Microwave ISO 9001:2015 certification badge
Dolph Microwave RoHS compliance badge
Dolph Microwave one year warranty badge

Ready for Model Confirmation?

Email the magnetron model, frequency, CW power, WR size, flange and drawing. Dolph Microwave can review a catalog reference or quote a custom launcher.

Email RFQ to Dolph Microwave

Technical Downloads

Keep the launcher datasheet and flange designation reference with the RFQ or engineering file.
