Reflector and site configuration

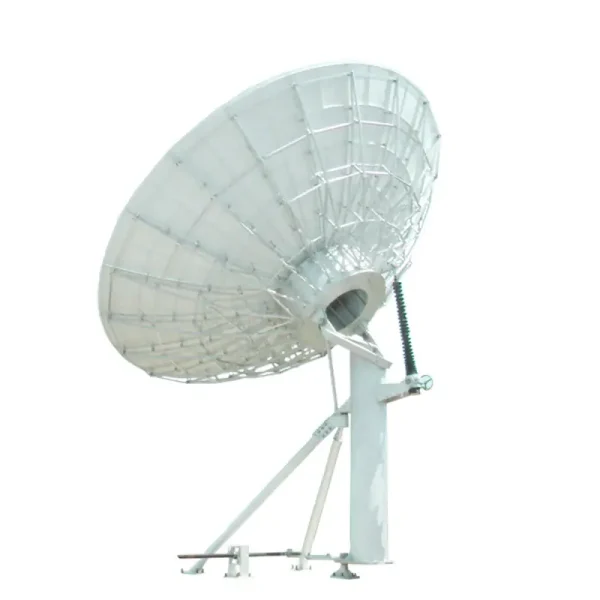

Reflector and mount
Aluminum draw-die-formed panels, contoured radials and galvanized steel parts. Kingpost elevation-over-azimuth mounting; travel ranges are listed below.
Feed options
C/Ku dual-band feed systems and multibeam dish solutions are listed. The PDF also mentions L/X options; their RF values are not provided in the C/Ku table.
Packing
Published shipment: 5 seaworthy cases, 4230KG and 26.21CBM. Confirm the packing for the selected configuration.
Installation and wind
The webpage says assembly needs no crane; confirm the delivery sections and site lifting plan. Normal operating, survival and optional high-wind conditions are kept separate below.
Standards and approval references
Download the original specification PDFSpecifications and configuration details
C/Ku-band receive specifications
| C/Ku-band Linear | Receive | Receive |
|---|---|---|
| Frequency, GHz | 3.625-4.2 | 10.95-12.75 |
| Mid-Band Gain, dBi | 48.1 | 58.09 |
| VSWR | 1.4:1 | 1.3:1 |
| 3dB Beam Width, deg | 0.65 | 0.21 |
| Noise Temperature: 20 Deg Elevation, K | 51 | 54 |
| Noise Temperature: 30 Deg Elevation, K | 47 | 48 |
| Typical G/T @ 10 Degrees | 28.7 | 35.1 |
| Port to Port Isolation: Rx to Rx (same band), dB | 30 | 30 |
| Axial ratio, dB | 1.5 | |
| Cross-pol on Axis, dB | 30 | 30 |
| Insertion Loss, dB | 0.35 | 0.25 |
| Feed Interface | WR-229 CPR | WR-75 CPR |
Radiation-pattern entries
| Parameter | Published entry |
|---|---|
| Radiation Pattern Compliance | FCC 25.209, ITU-RS.580-6, |
| First sidelobe, dB | ≤ -14 |
| Sidelobe Envelope | 32 – 25 log (1° ≤ θ <20°) |
Confirm the applicable pattern report for the selected feed. The older webpage names ITU-RS-580 without the same revision detail.
Mechanical and packing specifications
| Parameter | Published entry |
|---|---|
| Antenna Optics | Prime focus design |
| Reflector Aperture | 7.5 Meters (24.6Feet) |
| Reflector Panels | 16 precision-formed aluminum panels |
| F/D Ratio | 0.4 |
| Mount Configuration | Kingpost Pedestal Elevation-over Azimuth axis configuration |
| Drive Type | Manual / Motorized jack screw |
| Surface Accuracy (RMS) | 0.5 mm |
| Elevation Travel | 0° to 90° Continuous, Including El Angle Adjustment Mark, |
| Azimuth Travel | ±85° or 360° Continuous, |
| Pol. Travel | ±90° Continuous, |
| Antenna Foundation | Reinforced Concrete Foundation, or Non-penetrating mount (NPM) |
| Shiping Case | 5 Case, Seaworthy Packing |
| Shipping Weight | 4230KG, Total volume: 26.21CBM |
Environmental performance
| Parameter | Published entry |
|---|---|
| Operational Wind | 45 mph (72 km/h) gusting to 60 mph (97 km/h) |
| Survival Wind | 125 mph (200 km/h) |
| Temperature | -40°C to +50°C |
| Humidity | 0-98% |
Published options and scope
| Source | Entry retained | Order check |
|---|---|---|
| Webpage frequency list | L, C, Ku | Datasheet table gives C/Ku receive configurations. |
| Datasheet title | L-Band, X-Band (Military/WGS) Option | Request the performance data for the actual optional feed. |
| Webpage wind option | 180 mph (288 km/h) | Not the standard survival rating in the datasheet. |
| Datasheet feature | 130km/h gusts to 200km/h High Operation Wind Option. | Confirm the required wind condition and configuration. |
| Webpage installation | Installation without the need for a crane | Confirm the actual delivery and site handling plan. |
| Webpage short description | signal reception and transmission | The model sheet specifies receive-only service; no transmit rating is established. |
Product-family reference from the original page
The entries below are retained as published. Where they differ from the model-specific catalogue, confirm the selected configuration using the notes above.
| Parameter | Specification |
|---|---|
| Frequency Bands | L, C, Ku |
| Reflector Design | High-Accuracy, Aluminum Draw Die Formed |
| Construction | Galvanized Steel, Hot-Dipped Option Available |
| Wind Survival | 125 mph Standard, 180 mph High Wind Option |
| Installation Options | Fixed, Motorized; Penetrating, Non-Penetrating |
| Pedestal Type | King Post Pedestal Mount |
| Compliance | FCC 25.209, ITU-RS-580 |
Drawings and original documents

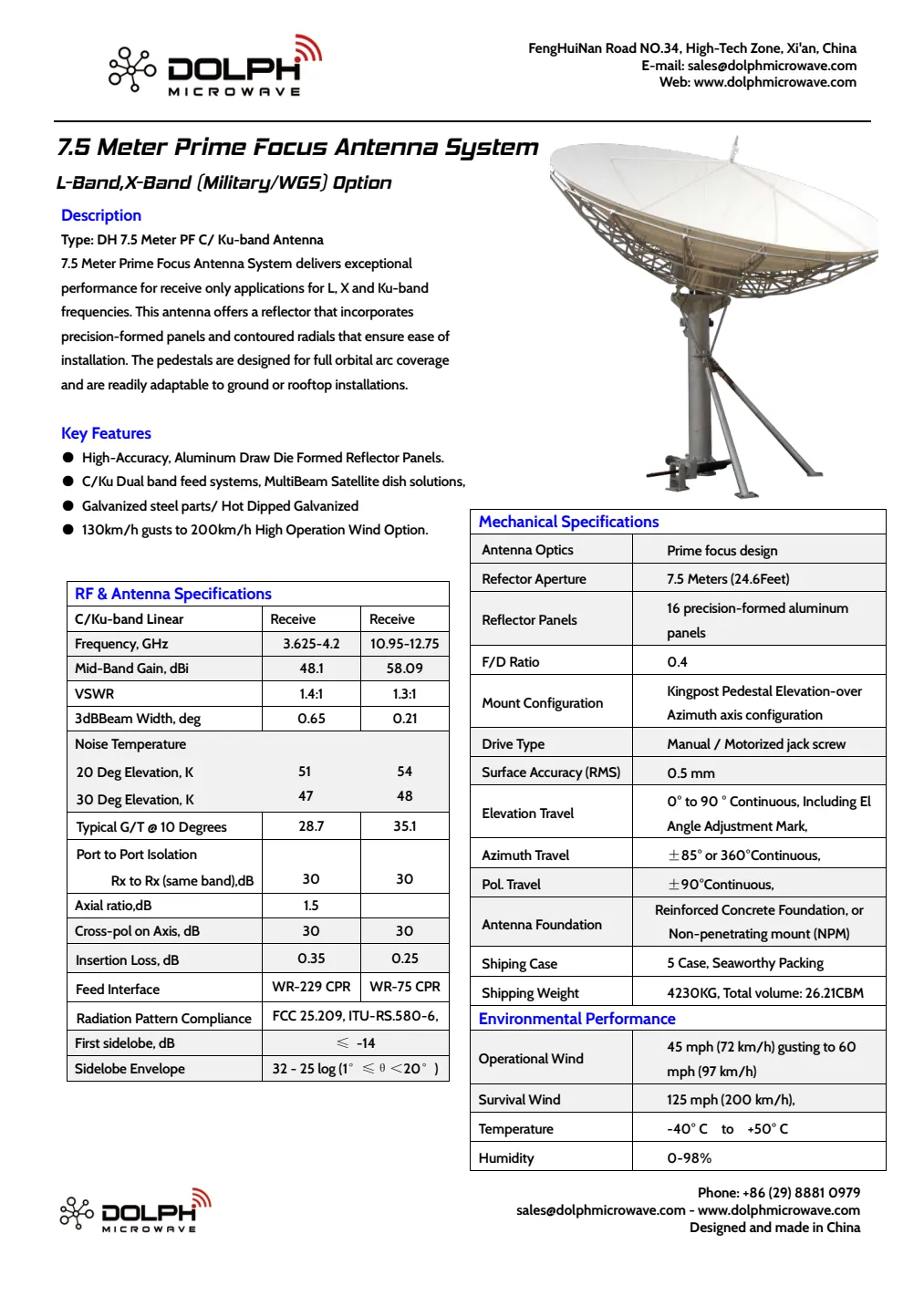

7.5 Meter Prime Focus Antenna Systems Specification Sheet
Download PDFView original pages (1)
Related products
For the published larger receive/transmit configuration, see 9.0 Meter Earth Station Antenna. For another receive-only option, see 6.0 Meter Receive Only Antenna.
Include these details in your inquiry
- Receive frequency band and polarization
- Feed configuration and receiver interface
- Required pointing and drive arrangement
- Ground or rooftop installation details
- Foundation and site wind requirements
- Delivery location and handling constraints
