9.0 Meter Earth Station Antenna

The Dolph DH 9.0 m earth station antenna serves fixed satellite uplink and downlink installations. Its Ku-band linear configuration lists 10.95–12.75 GHz receive and 13.75–14.5 GHz transmit, with 59.42 dBi and 60.35 dBi mid-band gain respectively. Both ports use WR-75 CPR interfaces. Choose the feed and site configuration from the model data, and resolve the optical-design and support-structure differences before ordering.

9.0 mPublished reflector aperture
10.95–12.75 GHzKu-band receive
13.75–14.5 GHzKu-band transmit

Reflector, feed and installation

Reflector and assembly

The 9.0 m reflector uses 16 formed aluminum panels with matched radials and hub. Check the assembly drawing, alignment procedure and site access alongside the RF requirement; the catalogue lists 0.5 mm RMS surface accuracy.

Structure

The webpage lists a galvanized pedestal, aluminum back structure and stainless-steel hardware. The PDF instead lists galvanized steel reflector backup structure; confirm the supplied structure.

Feed options

The detailed RF table covers the Ku-band linear feed only. C-, X- or Ka-band and CP/LP options need their own frequency limits, polarization, port arrangement and interface drawing. Do not apply the Ku-band gain or power entries to an optional feed.

Optics and approvals

Webpage: Cassegrain. PDF: Ring-focus design. Confirm the project drawing. The PDF approval and radiation-pattern references apply only where supported by documents for the selected configuration.

9.0 Meter Dual-Reflector Earth Station Antennas System Data Sheet original specification sheet
Original specification sheet · Open full size

Standards and approval references

Radiation-pattern standards

FCC 25.209, IESS and ITU-RS.580-5 appear in the datasheet description. Its RF table states FCC 25.209 and ITU-RS.580-6. The original versions are retained; specify the applicable project requirement.

Operator approval statement

The datasheet states: Type approval from: Intelsat/Asiasat/APT/Chinasat. It also names INMARSAT, ASIASAT, INTELSAT, APT and Chinasat in the description. Request the approval document applicable to the selected antenna configuration.

Download the original specification PDF

Specifications and configuration details

Ku-band RF & antenna specifications

Ku-band LinearReceiveTransmit
Frequency, GHz10.95-12.7513.75-14.5
Mid-Band Gain, dBi59.4260.35
VSWR1.3:11.3:1
3dB Beam Width, deg0.180.16
Noise Temperature: 10 Deg Elevation, K73
Noise Temperature: 20 Deg Elevation, K65
Typical G/T @ 10 Degrees37.1
Port to Port Isolation: Tx to Rx (same band), dB85
Tx Power Capability, KW1
Cross-pol. on Axis, dB3535
Insertion Loss, dB0.300.25
Feed InterfaceWR-75 CPRWR-75 CPR

Empty cells are retained. A blank is not a zero or a guaranteed specification.

Radiation-pattern entries

ParameterPublished entry
Radiation Pattern ComplianceFCC 25.209, ITU-RS.580-6,
First sidelobe, dB≤ -14
Sidelobe Envelope32 – 25 log (1° ≤ θ <20°)

These are datasheet claims. Confirm applicable test evidence and configuration-specific acceptance requirements.

Mechanical specifications

ParameterPublished entry
Antenna OpticsRing-focus design
Reflector Aperture9.0 Meters (29.5 Feet)
Reflector Panels16 precision-formed aluminum panels
Antenna FoundationReinforced Concrete Foundation, or Non-penetrating mount (NPM)
Mount ConfigurationKingpost Pedestal Elevation-over Azimuth axis configuration
Drive TypeManual / Motorized jack screw
Surface Accuracy (RMS)0.5 mm
Finishes / Reflector SurfaceAluminum panels with high-diffusing white paint
Pedestal & Reflector Backup StructureGalvanized steel parts/ Hot Dipped Galvanized After Fabrication Galvanized
Elevation Travel5° to 90° Continuous,
Azimuth Travel±85° or 360° Continuous,
Pol. Travel±90° Continuous,

Environmental performance

ParameterPublished entry
Operational Wind45 mph (72 km/h) gusting to 60 mph (97 km/h)
Survival Wind125 mph (200 km/h)
Temperature-40°C to +50°C
Humidity0-98%

Additional published configuration statements

SourceEntry retainedOrder check
WebpageCassegrain, Dual-ReflectorDatasheet says Ring-focus; confirm optical design.
WebpageStandard 125 Mph, High Wind Option 180 MphKeep survival and operating conditions separate.
Datasheet feature130km/h gusts to 200km/h High Operation Wind Option.Confirm optional structural configuration.
Datasheet featureType approval from: Intelsat/Asiasat/APT/ChinasatRequest approval evidence for the selected configuration.
Datasheet descriptionFCC 25.209, IESS and ITU-RS.580-5, INMARSAT, ASIASAT, INTELSAT, APT and Chinasat, etc.Source wording; the RF table separately states ITU-RS.580-6. Confirm the applicable requirement.
Datasheet titleX- (Military/WGS), C-, or Ka-Band CapabilitiesObtain performance data for the selected optional feed.

Product-family reference from the original page

The entries below are retained as published. Where they differ from the model-specific catalogue, confirm the selected configuration using the notes above.

ParameterSpecification
TypeDH 9.0 Meter DR Ku-band Antenna
OpticsCassegrain, Dual-Reflector
Frequency BandsC, Ku, Ka, with CP/LP switchable feed
StructureGalvanized Pedestal, Aluminum Back Structure
Reflector DesignHigh-Accuracy, Stretch Form Precision
Installation FeaturesSelf-Aligning Reflector, Factory Assembled Hub
Wind SurvivalStandard 125 Mph, High Wind Option 180 Mph

Drawings and original documents

9.0 Meter Dual-Reflector Earth Station Antennas System Data Sheet

Download PDF
View original pages (1)

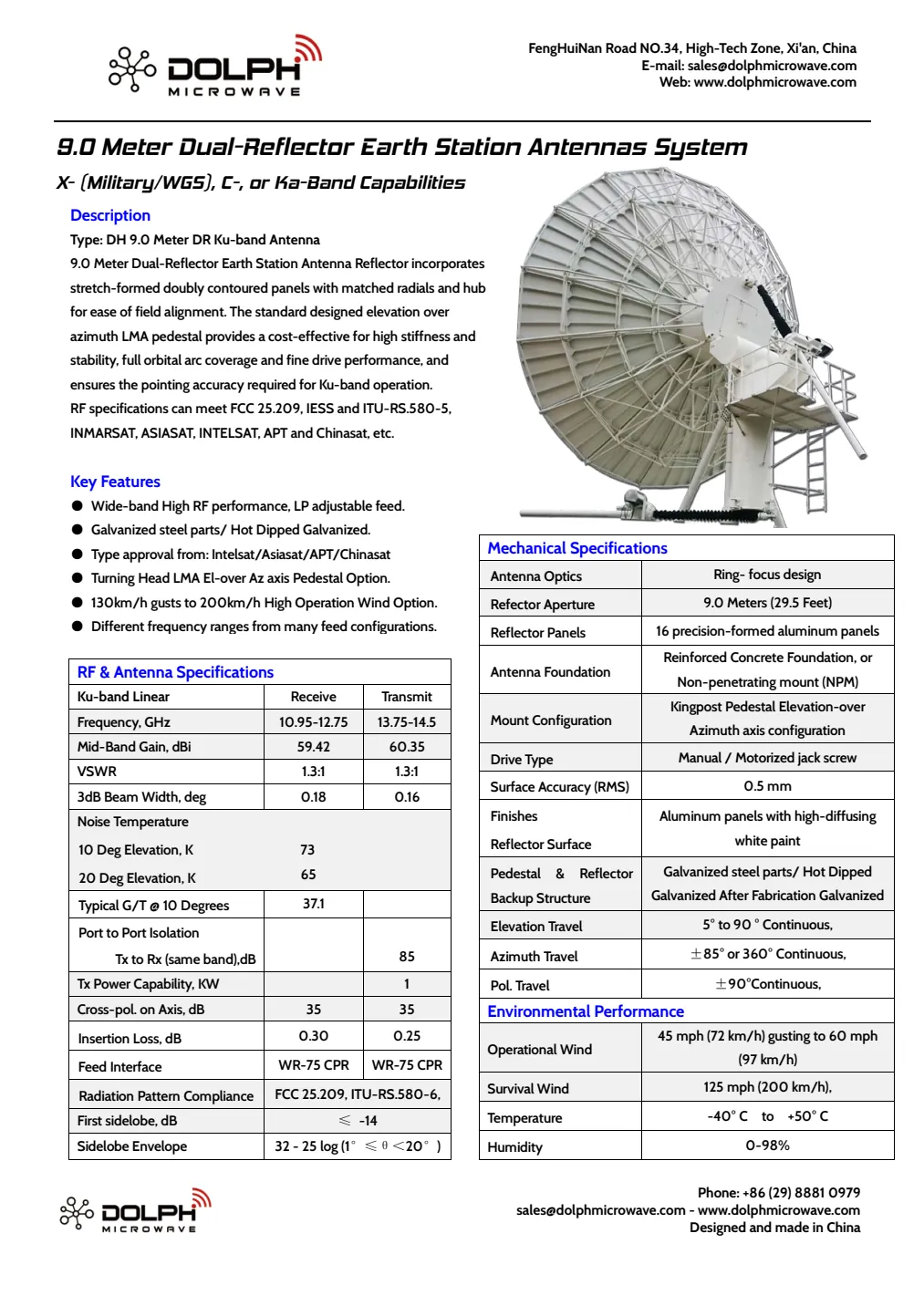

9.0 Meter Dual-Reflector Earth Station Antennas System Data Sheet — original page 1, including all tables and drawing annotations
Original document, page 1. Open the image for full-size details.

Include these details in your inquiry

  • Receive and transmit frequency ranges
  • Polarization and required feed configuration
  • Transmit power and RF interfaces
  • Manual or motorized drive and travel limits
  • Site location, wind conditions and foundation drawing
  • Applicable approval or test documentation
