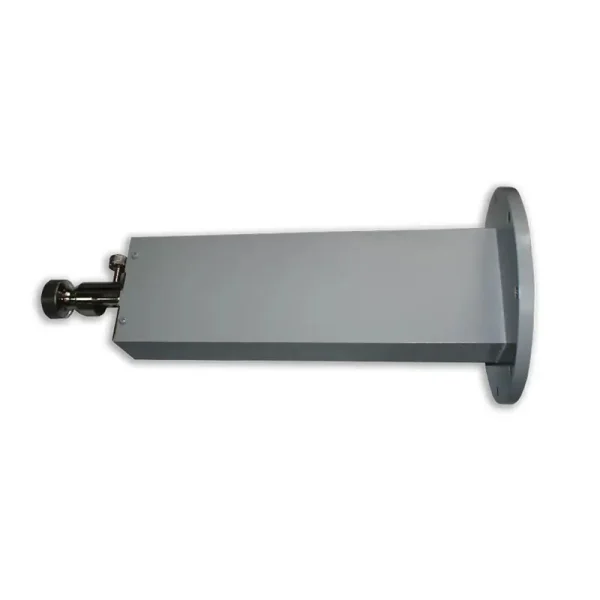

Waveguide Sliding Short

A waveguide sliding short moves a reflective short-circuit boundary to vary reflection phase and the impedance seen at a fixed reference plane. It is used in controlled tuning and measurement setups. Select WR size, operating band, flange, travel and position resolution; high VSWR is intentional and does not mean the device is a matched load.

Adjustable Waveguide Short

Tune the reflection position without changing the waveguide section

A waveguide sliding short moves a short-circuit boundary to change reflection phase at a fixed reference plane. In an ideal uniform guide, moving it by one-half guide wavelength produces a full 360° round-trip phase change. Actual travel, phase repeatability and RF limits must be confirmed for the selected model.

WR2300–WR10
Published waveguide size range
Al / Cu
Material options
3
Cover, grooved, choke flange styles
Movable
Adjustable short position
Published Configuration

What can be specified

Use these published options as the starting point. Exact model dimensions and adjustment details are confirmed for the selected interface.

Send Your Requirement

Broad Waveguide Compatibility

The published family spans WR2300 to WR10. Select the guide size and usable operating band together; this range does not mean one device operates over all listed bands.

Precision Adjustment

Specify the required travel, positioning resolution and mechanical reference. A movable short supports controlled electrical-length adjustment, but a precision or calibration claim needs corresponding model data.

High-Quality Construction

Aluminum and copper are listed material options. Specify the model material and surface finish when conductivity, corrosion or assembly compatibility affects the application.

Versatile Flange Options

Flange Types: Including cover, grooved, and choke, to accommodate different system requirements and ensure a secure fit.

Reflective Short-Circuit Behavior

High VSWR is intentional because a short reflects RF energy. It is not evidence of low reflection or efficient power absorption. Keep incident power within the approved limit and use a matched load when the test requires energy dissipation.

Product Specifications Example

Published product-page data

Keep the selected WR size and flange interface in the RFQ so the model can be checked against the mating waveguide.

Specification Detail
Waveguide SizeWR2300 to WR10
TypeAdjustable, movable
MaterialAluminum (Al), Copper (Cu)
Flange TypeCover, Grooved, Choke
PerformanceLow loss, High VSWR

Have a WR size or mating flange drawing?

Send it with the operating frequency, material preference and quantity. We can review the interface before quotation.

Ask for Model Review
Applications

Where adjustable shorting is used

01

Calibration and Testing

Used where the reflection position needs to be adjusted during microwave component or system measurement.

02

Research Laboratories

Supports experimental setups that require controlled changes to waveguide electrical length.

03

Telecommunications

Used in development and maintenance setups that need controlled waveguide tuning.

04

Radar Systems

Applied in waveguide test paths where phase or impedance adjustment is required.

05

Satellite Communications

Supports testing and adjustment work around waveguide-based satellite communication hardware.

Choose the Right Short

Sliding or fixed?

Use a sliding short when you need to move the short-circuit position. For a fixed reflection point, review the shorting plate or offset-short options.

A

Need adjustable phase / impedance work

Stay with the Waveguide Sliding Short.

B

Need a fixed high-reflection termination point

Compare Waveguide Shorts / Shorting Plates and the offset-short reference.

C

Need an adjustable matched load instead

Review the Waveguide Sliding Termination.

For Quotation

Send the data that defines the fit

A drawing is useful when the unit must replace an existing part or fit a restricted test fixture.

Send Specs or Drawing
01

Waveguide size and operating frequency

Provide the WR or IEC designation and the frequency range used in your setup.

02

Flange interface

State the cover, grooved or choke interface, or send the mating flange code/drawing.

03

Material

Select aluminum or copper, or ask sales engineering to review the required configuration.

04

Adjustment and mechanical limits

Share the travel range, required position resolution, flange-to-short reference and installation envelope. State whether acceptance is mechanical position, reflection phase, or both.

05

Quantity and supporting files

Include quantity plus any PDF, STEP, sketch, existing part number or marked-up system drawing available.

Manufacturing & Test Support

Built and reviewed by a microwave component manufacturer

Dolph Microwave was founded in 2001 in Xi’an. Published capabilities include CNC machining, turning, waveguide forming and bending, plating, soldering and brazing, and RF vector/scalar measurement support up to 100 GHz.

2001

Company founded

Microwave components and antenna feed systems.

100 GHz

Published RF measurement capability

Vector and scalar measurement support is listed up to 100 GHz.

1 year

Published product warranty

Material and workmanship defects are covered for one year from the date of delivery under Dolph Microwave’s published warranty terms.

Interface Reference
Waveguide Flange Standard EIA & IEC

Check flange families before fixing the mating interface.

Calibration Reference
Waveguide Calibration: 5 Key Steps

A practical reference for waveguide measurement setup and calibration checks.

Flange Selection Guide
Waveguide Flange Size Guide

Useful when EIA / IEC naming and gasket fit need to be checked together.

Standard Waveguide Range
Waveguide Components & Sales Support

Review the wider waveguide range, manufacturing support and order information.

Project Review

Send your WR size, flange and adjustment requirement

We can review a standard requirement, replacement part, modified interface or custom mechanical configuration. Dolph Microwave publishes a one-year warranty covering defects in material and workmanship from the date of delivery.
