High-Power Double-Ridged Waveguide to Coaxial Adapters

High-power adapters connect double-ridged waveguide to DIN 7/16 or N-type coaxial interfaces. Listed models span 0.84–18.5 GHz with 500–1000 W average-power entries; select the exact model, flange, launch direction and operating conditions.

Double-Ridged Waveguide / High Power

High-Power Double-Ridged Waveguide to Coaxial Adapter

For connecting a high-power double-ridged waveguide line to a coaxial cable or RF module. The listed models cover WRD840 through WRD750, with DIN 7/16 or N-type interfaces and right-angle or end-launch layouts. The model table lists average-power ratings up to 1000 W; confirm the operating conditions for the selected configuration.

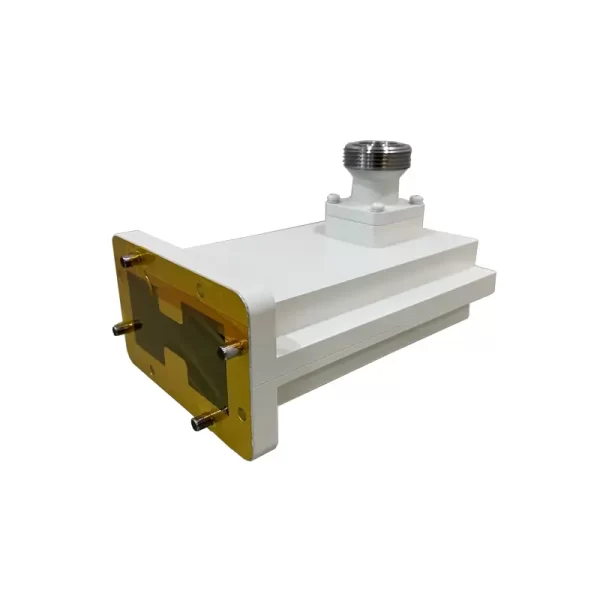

Dolph Microwave high-power double-ridged waveguide coaxial adapter
WRD840–WRD750Waveguide sizes in the current high-power table
0.84–18.5 GHzFrequency span represented by the listed model rows
Up to 1000 WPublished average power, depending on model
WHPCA / WHPECARight-angle and end-launch layouts
Start With the Interface

Frequency alone is not enough to pick the adapter.

Use the full operating band

Send the lower and upper frequency limits. A center frequency can point to more than one waveguide family.

Match the exact WRD flange

Confirm the WRD size and whether the mating flange is cover or grooved. Bolt pattern and sealing face matter.

Choose the coax connector

The current high-power rows list DIN 7/16 for WRD840 and N-K for the other listed WRD sizes.

State the real power condition

Give average power. For pulsed systems, also give peak power, pulse width and duty cycle.

If power or flange selection is still open, see the waveguide power handling guide and the waveguide flange size guide.

Mechanical Layout

Right-angle or end-launch: choose the one that fits the real assembly.

High-power double-ridged waveguide coaxial adapter product view

Check connector clearance before the model is released.

Check cable bend radius, wrench access and connector direction in the installed assembly.

  • WHPCA: high-power right-angle waveguide to coaxial adapter.
  • WHPECA: high-power end-launch waveguide to coaxial adapter.
  • Confirm the available envelope, cable direction and flange clocking from your drawing or installation space.
Product family view used to review a right-angle waveguide coaxial adapter layout
WHPCA

Right-angle layout

Use this when the coax cable needs to leave from the side of the waveguide body or when axial space is tight.

Closer product crop for reviewing connector and waveguide interface space
WHPECA

End-launch layout

Use this when an axial connector position suits the assembly. Leave enough room for the mating connector and cable bend.

Published Electrical Data

Use the table row, not the biggest number on the page.

0.84–18.5 GHzFrequency span actually represented by the current high-power model rows.
1.25:1–1.4:1VSWR values published across the listed models.
0.3–0.4 dBInsertion-loss values published across the listed models.
500–1000 WAverage-power values appearing in the current model table.

The listed configurations span 0.84–18.5 GHz across different models. Select one row for its complete band, VSWR, insertion loss, connector and power rating. Requirements outside those rows need a separate model review.

Define the electrical acceptance test

Use the selected model row to set the operating band, then specify maximum insertion loss and VSWR at both interfaces. The adapter loss guide explains the difference between reflected power and transmission loss, including the reference planes needed for a meaningful VNA result.

A low-power VNA sweep does not verify high-power heating or breakdown. Include average power, peak power, duty cycle, ambient temperature, cooling arrangement and load mismatch in the required operating conditions.

For radar or SATCOM RF paths, confirm the pulse or continuous-wave duty and the mating hardware. For a test and measurement setup, include the fixture interfaces and calibration method so adapter and fixture losses can be distinguished.

Send your band, interfaces and power conditions

Quick Model Shortlist

Find the WRD family first, then check the full row.

WG SIZEFREQUENCYCONNECTORAVG. POWERCOVER FLANGEGROOVED FLANGE
WRD8400.84–2.0 GHzDIN 7/16800 / 1000 WFPWRD840U24FMWRD840U24
WRD1501.5–3.6 GHzN-K600 WFPWRD150D24FMWRD150D24
WRD2002.0–4.8 GHzN-K500 WFPWRD200D24FMWRD200D24
WRD2502.6–7.8 GHzN-K500 WFPWRD250D30FMWRD250D30
WRD3503.5–8.2 GHzN-K500 WFPWRD350D24FMWRD350D24
WRD4754.75–11.0 GHzN-K500 WFPWRD475D24FMWRD475D24
WRD5005.0–18.0 GHzN-K500 WFPWRD500D36FMWRD500D36
WRD5805.8–16.0 GHzN-K500 WFPWRD580D28FMWRD580D28
WRD6506.5–18.0 GHzN-K500 WFPWRD650D28FMWRD650D28
WRD7007.0–18.5 GHzN-K500 WFPWRD700D26FMWRD700D26
WRD7507.5–18.0 GHzN-K500 WFPWRD750D24FMWRD750D24

Use this shortlist to identify the WRD family, then use the complete model row below for electrical and mechanical requirements.

Complete Published Table

All current high-power model rows

MODELFREQ. RANGE (GHz)WG SIZEVSWRIL (dB) CONNECTOR TypeAVG. POWER (W)COVER FLANGEGROOVED FLANGE MATERIALFINISHDATASHEET
DH-840DRWHPCA…0.84-2.0WRD8401.25:10.3DIN 7/161000FPWRD840U24FMWRD840U24AlChromate/PaintedPDFSTEP
DH-840DRWHPECA…0.84-2.0WRD8401.25:10.3DIN 7/161000FPWRD840U24FMWRD840U24AlChromate/PaintedPDFSTEP
DH-840DRWHPCA…0.84-2.0WRD8401.25:10.3DIN 7/161000FPWRD840U24FMWRD840U24AlChromate/PaintedPDFSTEP
DH-840DRWHPECA…0.84-2.0WRD8401.25:10.3DIN 7/161000FPWRD840U24FMWRD840U24AlChromate/PaintedPDFSTEP
DH-840DRWHPCA…0.84-2.0WRD8401.25:10.3DIN 7/16800FPWRD840U24FMWRD840U24AlChromate/PaintedPDFSTEP
DH-840DRWHPECA…0.84-2.0WRD8401.25:10.3DIN 7/16800FPWRD840U24FMWRD840U24AlChromate/PaintedPDFSTEP
DH-150DRWHPCA…1.5-3.6WRD1501.25:10.3N-K600FPWRD150D24FMWRD150D24AlChromate/PaintedPDFSTEP
DH-150DRWHPECA…1.5-3.6WRD1501.25:10.3N-K600FPWRD150D24FMWRD150D24AlChromate/PaintedPDFSTEP
DH-200DRWHPCA…2.0-4.8WRD2001.4:10.3N-K500FPWRD200D24FMWRD200D24AlChromate/PaintedPDFSTEP
DH-200DRWHPECA…2.0-4.8WRD2001.4:10.3N-K500FPWRD200D24FMWRD200D24AlChromate/PaintedPDFSTEP
DH-250DRWHPCA…2.6-7.8WRD2501.4:10.4N-K500FPWRD250D30FMWRD250D30AlChromate/PaintedPDFSTEP
DH-250DRWHPECA…2.6-7.8WRD2501.4:10.4N-K500FPWRD250D30FMWRD250D30AlChromate/PaintedPDFSTEP
DH-350DRWHPCA…3.5-8.2WRD3501.4:10.4N-K500FPWRD350D24FMWRD350D24AlChromate/PaintedPDFSTEP
DH-350DRWHPECA…3.5-8.2WRD3501.4:10.4N-K500FPWRD350D24FMWRD350D24AlChromate/PaintedPDFSTEP
DH-475DRWHPCA…4.75-11.0WRD4751.3:10.3N-K500FPWRD475D24FMWRD475D24AlChromate/PaintedPDFSTEP
DH-475DRWHPECA…4.75-11.0WRD4751.3:10.3N-K500FPWRD475D24FMWRD475D24AlChromate/PaintedPDFSTEP
DH-500DRWHPCA…5.0-18.0WRD5001.3:10.3N-K500FPWRD500D36FMWRD500D36AlChromate/PaintedPDFSTEP
DH-500DRWHPECA…5.0-18.0WRD5001.3:10.3N-K500FPWRD500D36FMWRD500D36AlChromate/PaintedPDFSTEP
DH-580DRWHPCA…5.8-16.0WRD5801.3:10.3N-K500FPWRD580D28FMWRD580D28AlChromate/PaintedPDFSTEP
DH-580DRWHPECA…5.8-16.0WRD5801.3:10.3N-K500FPWRD580D28FMWRD580D28AlChromate/PaintedPDFSTEP
DH-650DRWHPCA…6.5-18.0WRD6501.25:10.3N-K500FPWRD650D28FMWRD650D28Al/CuChromate/PaintedPDFSTEP
DH-650DRWHPECA…6.5-18.0WRD6501.25:10.3N-K500FPWRD650D28FMWRD650D28Al/CuChromate/PaintedPDFSTEP
DH-700DRWHPCA…7.0-18.5WRD7001.25:10.3N-K500FPWRD700D26FMWRD700D26Al/CuChromate/PaintedPDFSTEP
DH-700DRWHPECA…7.0-18.5WRD7001.25:10.3N-K500FPWRD700D26FMWRD700D26Al/CuChromate/PaintedPDFSTEP
DH-750DRWHPCA…7.5-18.0WRD7501.3:10.3N-K500FPWRD750D24FMWRD750D24Al/CuChromate/PaintedPDFSTEP
DH-750DRWHPECA…7.5-18.0WRD7501.3:10.3N-K500FPWRD750D24FMWRD750D24Al/CuChromate/PaintedPDFSTEP

WRD840 entries include both 800 W and 1000 W configurations. Request the complete part-number suffix and approved drawing to distinguish them. PDF and STEP labels in the table indicate document types; request the files for the selected model.

Power Is Model-Specific

“Up to 1000 W” does not mean every model is rated for 1000 W.

The model table lists 1000 W and 800 W WRD840 entries, 600 W for WRD150, and 500 W for the listed WRD200 through WRD750 entries. Check power and interface on the same row.

For pulsed systems, the average-power row does not replace peak-power review. Include the pulse conditions in the RFQ.

WRD840800 / 1000 W
WRD150600 W
WRD200–750500 W

Confirm the selected model rating and operating conditions against its approved drawing.

Part Number Guide

Read the code before comparing two quotations.

Published example DH-840DRWHPCANKPA
“840DR”Waveguide Size | WRD840
“WHPCA”Waveguide Type | High-Power Right Angle Waveguide to Coaxial Adapter
“WHPECA”Waveguide Type |High-Power End Launch Waveguide to Coaxial Adapter
“7-16”Connector Type | DIN 7-16
“N”Connector Type | High-Power N-type
“K”Interface Type | Female
“J”Interface Type | Male
“P”Flange Type | Rectangular Cover
“M”Flange Type | Rectangular Grooved
“A/C”Material | Aluminium, Cu

Finish options

All Dolph-MW models include an surtec/corrosion protection treatment and are painted flat black. Flanges are unplated, polished and surtec. Other finishes and paint colors are available upon request.

Before You Ask for a Price

A short RFQ can still be complete.

These are the details that usually stop the quote from going back and forth.

Send what is fixed. Mark what can change.

If you already have a drawing, STEP file, old part number or mating-part dimensions, send it. If you do not, the electrical and interface data below is enough to start a model review.

For a mixed waveguide route, the waveguide component sourcing page shows what to include when several parts need to match.

Operating bandLower and upper frequency limits, not only the center frequency.
WRD sizeThe waveguide family already used in your system.
Coax interfaceConnector series, gender and any cable or mating-part constraint.
Launch directionRight-angle WHPCA or end-launch WHPECA.
Power dataAverage power; for pulsed use add peak power, pulse width and duty cycle.
FlangeCover or grooved designation at the waveguide interface.
Mechanical spaceEnvelope, connector clearance, clocking and mounting limits.
Quantity and recordsPrototype / production quantity plus the drawings, STEP or test records you need.
Dolph high-power double-ridged waveguide coaxial adapter
Supplier Check

Ask for the evidence your project actually needs.

Request RF test data, dimensional inspection records and the approved interface drawing for the selected configuration. Define the required frequency sweep, acceptance limits, power conditions and document revision in the RFQ.

Review manufacturing and order-support information

Technical Downloads

Keep the drawings and flange reference with the RFQ.

Catalog reference

Double Ridge Waveguide Components

Broader double-ridged component catalog for interface and family reference.

Download PDF
Interface reference

FLANGE TYPE DESIGNATIONS INFORMATION

Reference for Dolph flange codes and standard waveguide flange designations.

Download PDF
Related Products

Parts buyers often review with this adapter

Common Questions Before Ordering

Clear up the interface before the purchase order.

Can I select the model by frequency only?

No. Use the full operating band together with WRD size, flange, connector and launch direction. Two parts can overlap in frequency and still be mechanically incompatible.

Does every model handle 1000 W average power?

No. The model table lists 1000 W and 800 W WRD840 entries, 600 W for WRD150, and 500 W for the listed WRD200 through WRD750 models. Use the power value on the same row as the selected model.

What is the difference between WHPCA and WHPECA?

WHPCA is the published code for the high-power right-angle waveguide-to-coaxial adapter. WHPECA is the end-launch version. Choose according to connector direction and the space available in your assembly.

What if my requirement is above 18.5 GHz?

These high-power model rows stop at 18.5 GHz. Send the exact band, WRD interface, connector, average and peak power, and cooling conditions for a separate configuration review. Higher-frequency coverage in another adapter family does not establish the same power rating.

What should I send if I need a drop-in replacement?

Send the old part number, photos, drawing or measured interface dimensions, the two mating interfaces and any dimensions that cannot change. Add quantity and required PDF, STEP, inspection or RF records.
