Adjustment and installation
Height and mounting
The photograph shows a height-adjustable platform. Allow clearance for the knob and moving structure; confirm base and attachment points on the installation drawing.
Materials and loading
The family feature text says Al/Cu, but all model rows say Stainless Steel. The capacity footnote is undefined; there is no capacity-versus-height curve in the catalogue.
Tray option
The catalogue describes a lower tray for cables/waveguides under a protective grate. It does not identify the tray or grate as included parts. Standard and requested mechanical configurations are listed.
Specifications and configuration details
Adjustable support model dimensions
| Model No* | Dimensions (mm) | Weight Carrying Capacity** (KG) | Material |
|---|---|---|---|
| DH-WAS-0-S | 50×40×(37～93) | 40 | Stainless Steel |
| DH-WAS-1-S | 70×55×(37～138) | 40 | Stainless Steel |
| DH-WAS-2-S | 100×75×(43～182) | 50 | Stainless Steel |
| DH-WAS-3-S | 140×100×(55～255) | 60 | Stainless Steel |
| DH-WAS-4-S | 160×120×(60～285) | 80 | Stainless Steel |
The original catalogue uses * and ** but does not define the footnotes. Confirm load conditions and final dimensions for the selected model.
Ordering information: DH – WAS – 2
| Code | Published meaning |
|---|---|
| DH | Dolph Microwave |
| WAS | WG Adjustable Support |
| 2 | Type 2 |
| S | Material Stainless Steel |
The example omits the S suffix while the key includes it. Keep the complete confirmed model number on the order.
Product-family reference from the original page
The entries below are retained as published. Where they differ from the model-specific catalogue, confirm the selected configuration using the notes above.
| Specification | Detail |
|---|---|
| Material | Aluminum/Copper |
| Load Bearing | High |
| Height | Adjustable |
Drawings and original documents

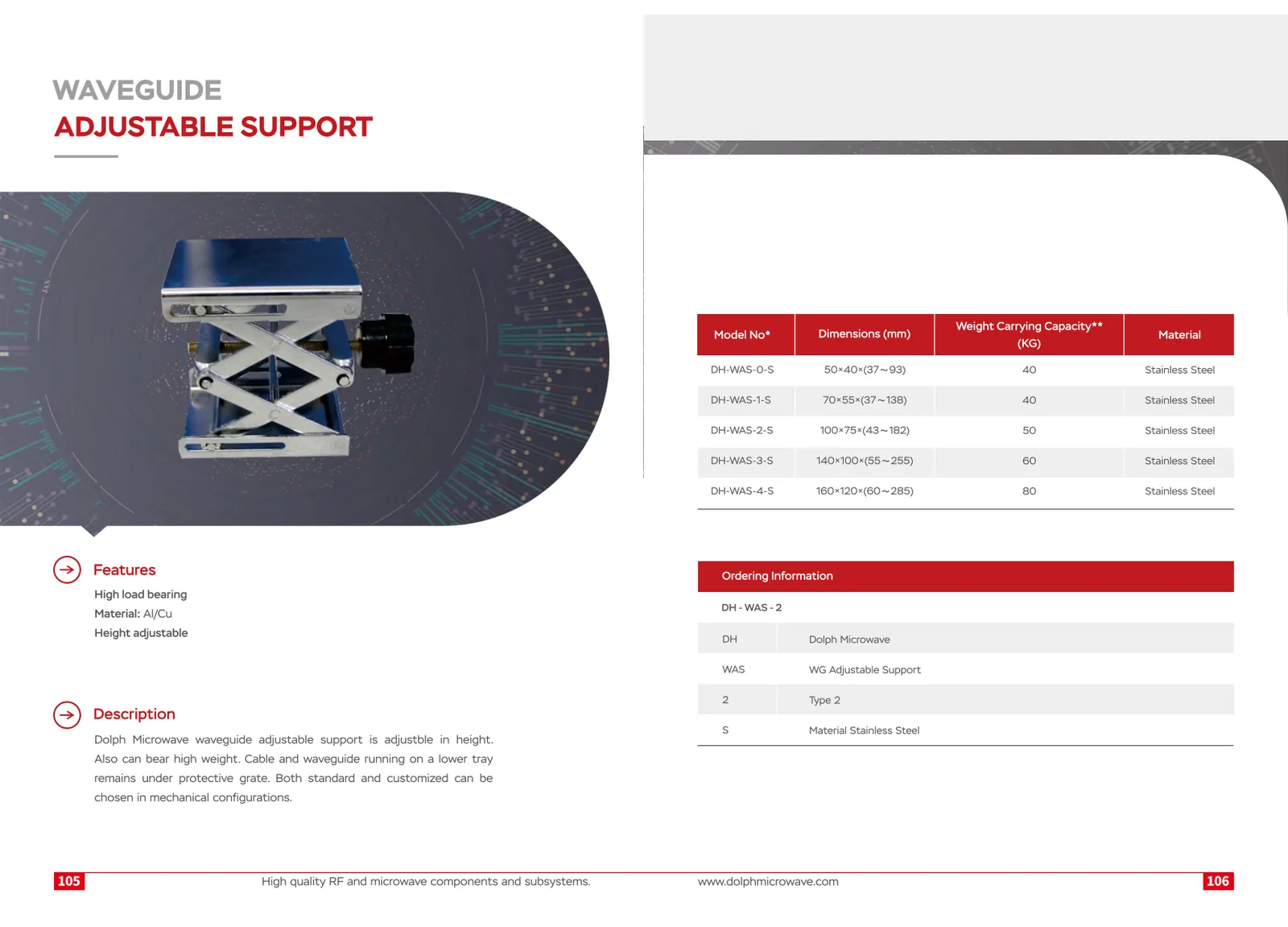

Waveguide Adjustable Support
Download PDFView original pages (1)
FLANGE TYPE DESIGNATIONS INFORMATION
Download PDFOriginal flange designations and dimensional reference. Match the exact interface shown on your assembly drawing.
Related products
For another mounting arrangement, compare Waveguide Standoff and Hangers. Include the dimensions of the Straight Waveguide Sections being supported.
Include these details in your inquiry
- Required height range
- Supported load and load arrangement
- Available platform and base footprint
- Fixing-hole or mounting drawing
- Material and environment
- Quantity and any tray/grate requirements
