Waveguide Accessories

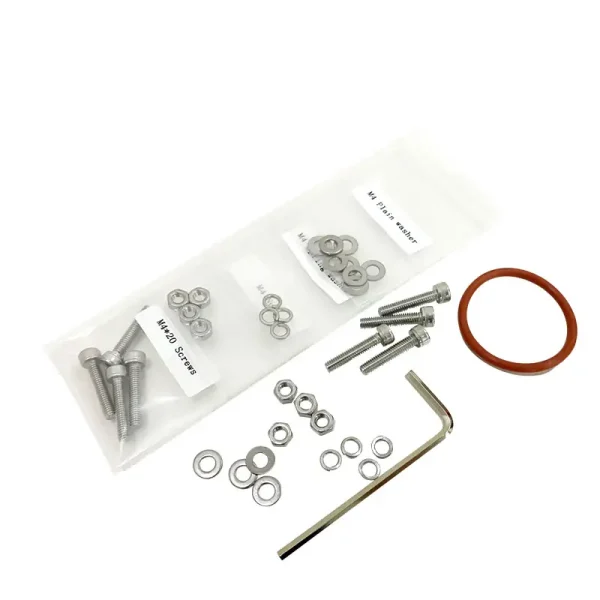

Dolph Microwave’s Waveguide Accessories collection features a comprehensive range of hardware components designed for the seamless assembly and maintenance of waveguide systems. These accessories, ranging from waveguide sizes WR2300 to WR10, include screws, nuts, washers, gaskets, and shims, ensuring a perfect fit for various applications.

WR2300–WR10Published family size range
Five gasket typesShape and dimensions in the catalogue
Flange matchConfirm the mating faces

Hardware and gasket details

Nuts and screws

Nuts: stainless steel, aluminum alloy or brass. Screws: specified sizes, lengths and threads with corrosion-resistant construction.

Washers and shims

High-strength washers distribute load and increase bearing area. Shims are offered in requested thicknesses and materials for alignment and dimensional adjustment.

Gaskets

Conductive and non-conductive options. Five profiles and the 873/877 material rows appear below; shielding entries describe materials, not a certified assembled joint.

Waveguide Accessories original specification sheet
Original specification sheet · Open full size

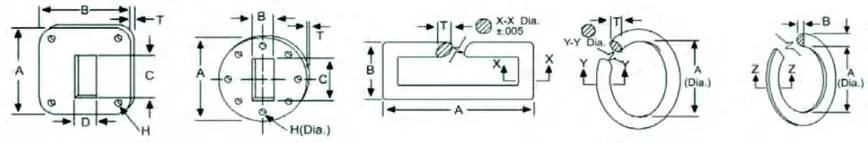

Gasket profile drawings

Five original gasket profiles: compare the dimensions in the tables below.
Five original gasket profiles: compare the dimensions in the tables below. Open image

Quality assurance

Quality control and testing

The original product page states that all waveguide accessories undergo stringent quality control and testing and that the products comply with industry standards.

Specifications and configuration details

Type 1 waveguide flat gasket size inch [mm]

A ± 0.15[0.38]B ± .015[0.38]-0C ± .015[0.38]-0D ± .015[0.38]H ± .010[0.25]T ± .015[0.13]Product Code
.750[19.05].750[19.05].145[3.68].285[7.24].116[2.95].027[0.69]87-87000
.875[22.23].875[22.23].175[4.45].425[10.80].116[2.95].027[0.69]87-87001
1.313[33.35]1.313[33.35].630[16.00].128[8.13].140[3.56].027[0.69]87-87002

Type 2 waveguide flat gasket size inch [mm]

A ± 0.15[0.38]B ± .015[0.38]-0C ± .015[0.38]-0H ± .010[0.25]T ± .015[0.13]Product Code
3.125[79.38].632[16.05]1.382[35.10].234[5.84].027[0.69]87-87007
3.625[92.08].882[22.40]1.882[47.80].234[5.94].027[0.69]87-87010
5.312[134.93]1.350[34.29]2.850[72.39]2.90[7.37].027[0.69]87-87012

Type 3 waveguide flat gasket size inch [mm]

A ± 0.15[0.38]B ± .015[0.38]-0T ± .015[0.13]Product Code
1.368[34.75].868[22.05].103[2.62]87-83005
1.616[41.05].991[25.17].103[2.62]87-83008

Type 4 waveguide flat gasket size inch [mm]

A ± 0.15[0.38]T ± .015[0.13]Product Code
2.001[51.08].123[3.12]87-83009
2.683[68.15].115[2.92]87-83011

Type 5 waveguide flat gasket size inch [mm]

A ± 0.15[0.38]B ± .015[0.38]-0T ± .015[0.13]Product Code
.410[10.41].065[1.42].082[2.08]87-83000
.587[14.91].048[1.22].078[1.98]87-83001

Printed values and tolerances are preserved, including apparent inch/mm inconsistencies. Confirm the controlled drawing before manufacture or purchase.

Gasket material properties

MaterialMagnetic Field 100KHzElectric Field 10MHzPlane Wave 1GHzPlane Wave 10GHzColourHardnessBody ResistanceTear Strength
87375dB130+dB115dB110dBGray85 ± 70.005 Ω-cm2.7MPa
87775dB130+dB115dB110dBRed80 ± 70.007 Ω-cm4.05MPa

Gasket shape key

TypePublished description
Type1Die cut square
Type2Die-cut round
Type3Molded square with “O” shaped cross section
Type4Molded round with “O” shaped cross section
Type5Molded round with “D” shaped cross section

Ordering information: DH – 120 FHKC

CodePublished meaning
DHDolph Microwave
120WR75
FHKCConductive Gasket, full O-Ring for FBM100 Flange
FHKNon-Conductive Gasket, full O-Ring for FBM100 Flange

Product-family reference from the original page

The entries below are retained as published. Where they differ from the model-specific catalogue, confirm the selected configuration using the notes above.

ComponentSpecifications
NutsMaterials: Stainless Steel, Aluminum Alloy, Brass
ScrewsSizes: Multiple; Corrosion-Resistant
WashersHigh-Strength Material; Enhances Support
ShimsCustomizable; Precision Alignment

Drawings and original documents

Waveguide Accessories

Download PDF
View original pages (1)

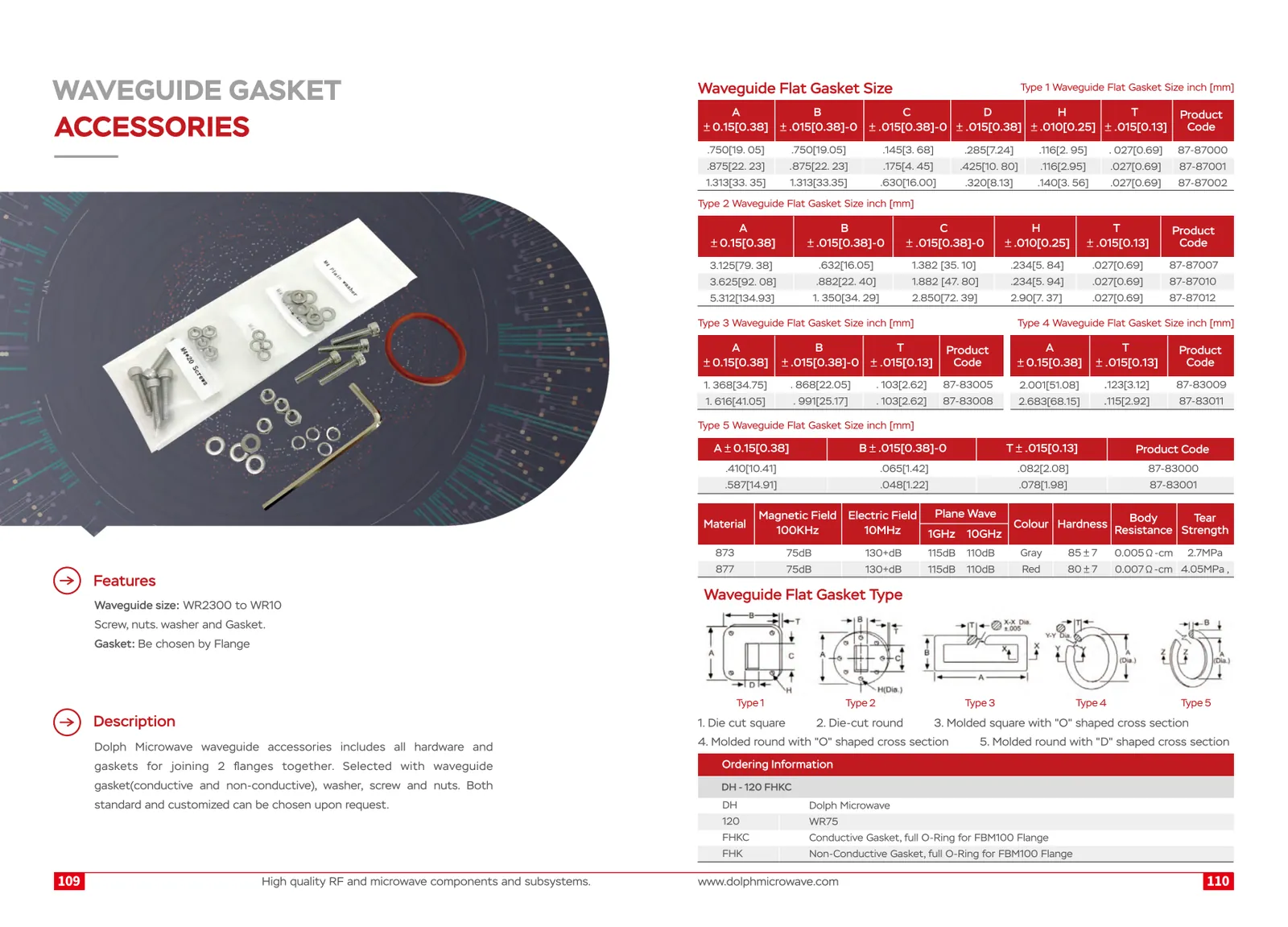

Waveguide Accessories — original page 1, including all tables and drawing annotations
Original document, page 1. Open the image for full-size details.

FLANGE TYPE DESIGNATIONS INFORMATION

Download PDF

Original flange designations and dimensional reference. Match the exact interface shown on your assembly drawing.

Include these details in your inquiry

  • WR size and exact flange designation
  • Gasket type and all required dimensions
  • Conductive or non-conductive material
  • Screw thread, length and finish
  • Washer, nut and shim requirements
  • Quantity per joint and total joint count
