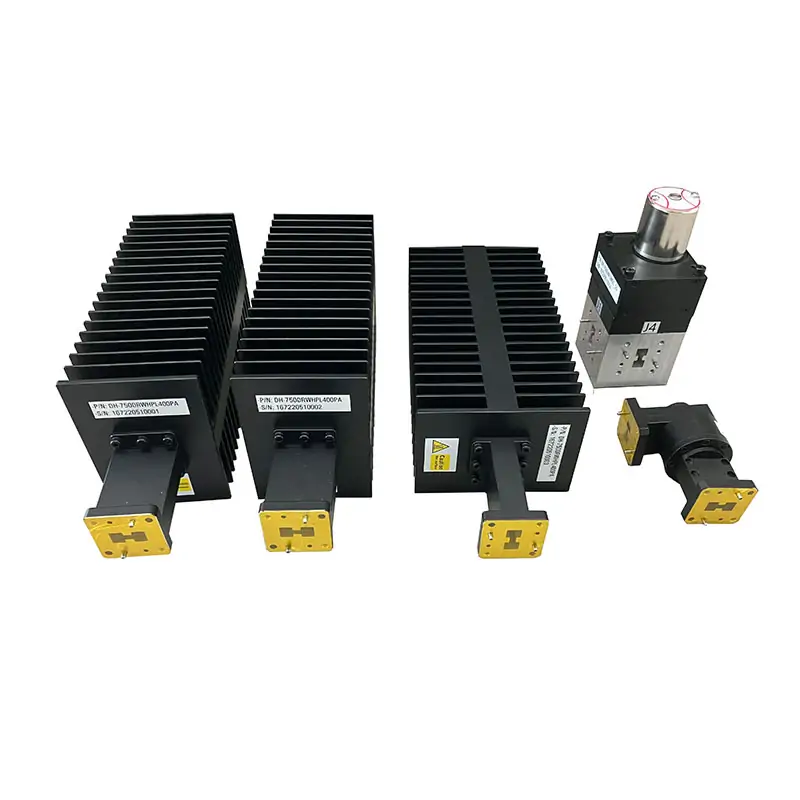

Double Ridge Waveguide Components

Double Ridge Waveguide Components are specialized parts designed to enhance the bandwidth and performance of microwave systems. They offer greater frequency range flexibility compared to standard waveguides, making them ideal for a wide array of applications including radar, telecommunications, and electronic warfare. These components are essential for systems requiring broad frequency coverage and high efficiency.

Core Catalog Span

0.84–40.0 GHz

Waveguide Families

WRD840–WRD180

Portfolio

Routing to Calibration

Power Classes

Low and High Power

Materials

Aluminum / Copper

Supply

Standard and Custom

Double-Ridged Product Family

Build a Broadband Waveguide System from Compatible Components

This page should function as a product-family navigator, not as a single-model specification page. The published Dolph portfolio includes routing sections, flexible connections, adapters, junctions, switching devices, pressure components, loads, attenuators and calibration hardware.

Published family rangeCore double-ridged product tables span WRD840 through WRD180 and 0.84 GHz through 40.0 GHz; availability varies by component type.
Interface controlSpecify the WRD family, flange style and flange designation at every connection point.
Performance controlVSWR, insertion loss, isolation, coupling, power and pressure limits are component-specific and should not be generalized across the full portfolio.
Custom assembliesProvide a system drawing when multiple bends, straights, transitions or flexible sections must be supplied as one assembly.

Product Categories

Double-Ridged Waveguide Components by Function

Choose the functional component first, then use the product-specific model table or drawing for the final electrical and mechanical selection.

System Selection

Four Decisions Before Requesting a Quote

A family-level inquiry without interface and performance data normally creates avoidable engineering back-and-forth. Define the system boundaries first.

01 / FUNCTION

Component Role

Routing, transition, division, coupling, switching, rotation, termination or calibration.

02 / BAND

Operating Range

Provide the complete frequency band and the selected WRD family.

03 / INTERFACE

Mechanical Ends

State the flange type, clocking, connector type and available installation envelope.

04 / LIMITS

Acceptance Limits

Define applicable VSWR, loss, power, isolation, coupling or leak requirements.

05 / ENVIRONMENT

Operating Conditions

Temperature, pressure, vibration, corrosion and sealing requirements.

06 / RECORDS

Documentation

Specify drawings, material records, dimensional inspection and RF test data.

Portfolio Scope

Do Not Apply One Construction Description to Every Component

WRD FAMILY + FUNCTION + INTERFACES + LIMITS
Rigid sectionsMaterial and finish depend on the selected component and size.
Flexible sectionsFlexible-waveguide construction details apply only to flexible products, not to the complete product family.
AdaptersConnector type and launch geometry are adapter-specific.
Control devicesSwitch, coupler, divider and rotary-joint parameters require their own product tables.

System-Level Review

Submit the Required Functions and an Interface Diagram

For a multi-component assembly, mark each component, flange, connector, length and critical acceptance requirement on a system drawing.
