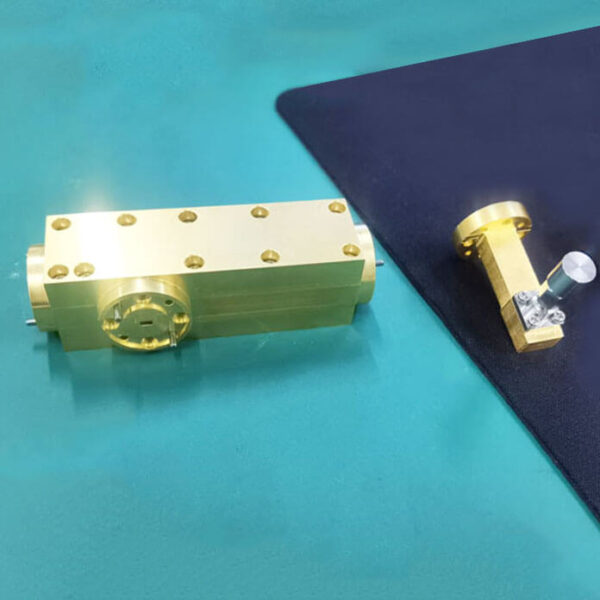

WR10 Waveguide 20dB Block Type Directional Coupler
The WR10 Waveguide 20dB Block Type Directional Coupler operates between 75GHz – 110 GHz with 1dB insertion loss and UG-387/U Flange. It is a high-performance component for high-frequency applications, utilizing advanced waveguide technology for precise parameter tuning. Widely used in microwave and millimeter-wave systems, providing high isolation and coupling levels.
Model DH-900WBDC20PPPC
Frequency Range 75.0-110.0 GHz
Coupling (dB) 20±1.5 dB
Main Line VSWR ≤1.2:1
Sec. Line VSWR ≤1.3:1
Directivity (dB) ≥40 dB
Dolph Microwave manufactures a standard product line of multi-hole block type directional coupler covering a wide frequency range. The optimum electrical characteristics of high directivity and coupling flatness are achieved utilizing a precision machined Tchebyscheff coupling hole distribution and a precision ground tapered load element in the secondary arm. Directional couplers are typically used for power sampling, frequency monitoring, especially in the test setups where power reflection measurements are required. Additional sizes and special configurations are available on request.
Key Features
Broad Frequency Range: Operating from 1.2 GHz to 40 GHz to accommodate a wide array of applications.
Low VSWR: Offering VSWR as low as 1.07:1, ensuring minimal signal reflection and loss.
High Power Capacity: Capable of handling maximum power up to 5 kW, suitable for high-power applications.
Minimal Insertion Loss: With insertion loss as low as 0.06 dB, maintaining signal integrity throughout the system.
Pressurization Capability: Designed for use in pressurized applications, ensuring reliable performance under various conditions.
