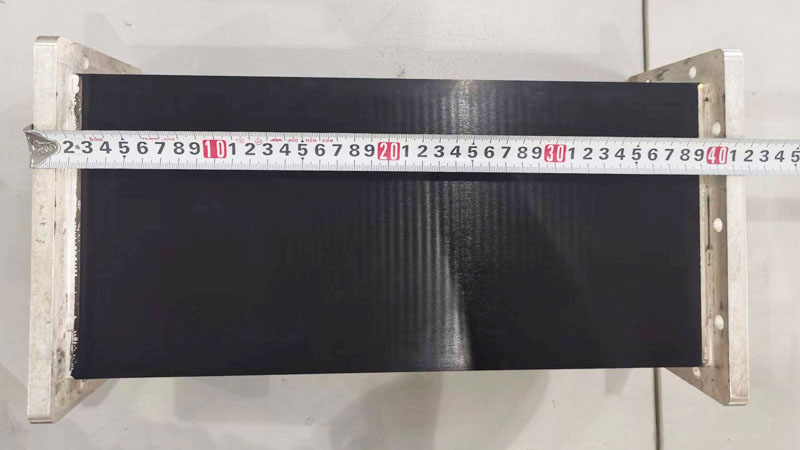

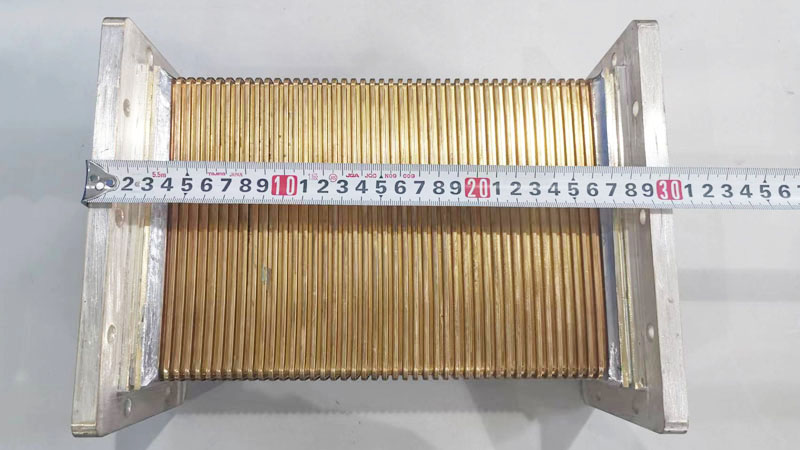

WR650 Seamless Flexible Waveguide from Dolph microwave, specially designed to meet all of your requirements. The Non-twistable waveguides is made from a helically wound waveguide core and additional mechanical support is offered from a variety of protective jackets.
WR650 Seamless Flexible Waveguide
- Model: DH-14WWEL****PMC
- Frequency Range: 1.13-1.73 GHz
- VSWR: ≤1.15:1
- Insertion Loss: 0.15 dB/m
- Waveguide Type: WR650
- Jacket: Silicone Rubber / Polysulfide Sealant
- Conductor Material: Brass
- Inside Diameter Size: 165.1 mm*82.55 mm
- Flange type: FDP14/FDM14
- Length (L): 100 ~1200 mm
- Max. Pressure: 0.3 Mpa
- Operation Temperature: -40℃~ +75℃
- Storage Temperature: -55℃~ +85℃
Main Feature
- Wide frequency range: covering the frequency band from 1.13 GHz to 1.73 GHz, suitable for a variety of wireless communications and radar systems.
- WR650 standard compatible: Compliant with WR650 waveguide standard, ensuring compatibility with standard equipment and providing stable and consistent performance.
- Soft and twist-free: The unique soft material design ensures that the waveguide will not be damaged when bent or bent, maintaining stability and performance.
- Seamless design: Made with seamless technology to ensure minimal loss and maximum efficiency during signal transmission.
- High temperature resistance: It has excellent high temperature resistance and is suitable for various complex environments and working conditions.
- Precision manufacturing: The manufacturing process is strictly controlled to ensure the stability and reliability of the waveguide.
Technical Parameters
- Frequency range: 1.13 GHz – 1.73 GHz
- Waveguide size: WR650
- Material: High quality soft material
- Maximum power handling capacity: reliable operation in high power transmission environment
- Temperature range: Suitable for wide temperature range
Application areas
- Communication system: used in microwave communication and satellite communication systems.
- Radar technology: Applicable to ground radar and aviation radar systems.
- Medical equipment: Reliable signal transmission in medical imaging and diagnostic equipment.
Applicable environment
This waveguide is suitable for a wide variety of industrial and commercial environments, including but not limited to:
- Military applications: used in military communications and radar systems.
- Aerospace: suitable for communication and radar equipment in the aerospace field.
- Healthcare: Provide reliable signal transmission in medical imaging and treatment equipment.
