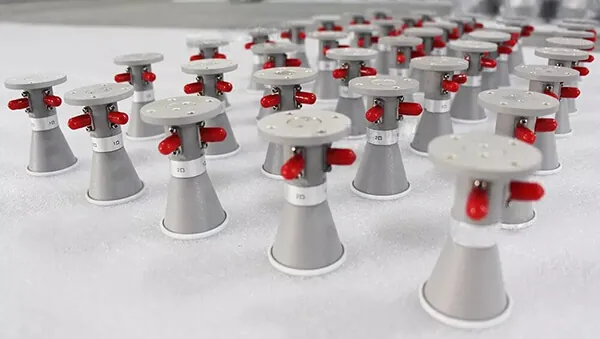

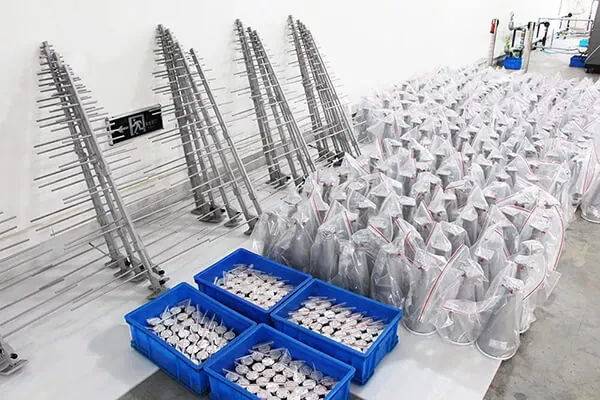

【Product Delivery and Testing】Quad-Ridged Horn Antenna

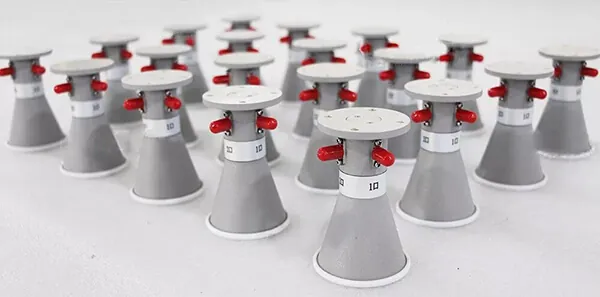

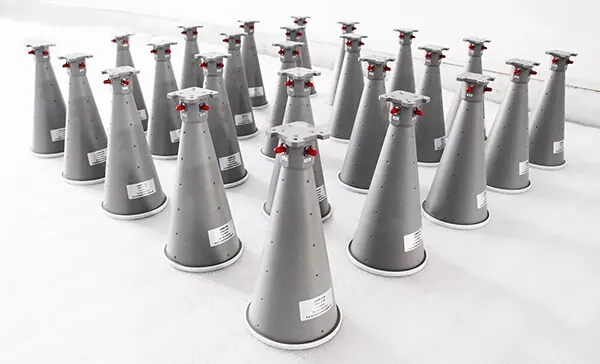

Quad-Ridged Horn Antenna is one of the wide-band antennas developed by Dolph Microwave. It covers different combined frequency bands within 0.1-40GHz, and is widely used in EMI / RFI testing, evaluation, and electronic monitoring. It can also be used as a feed for high-gain parabolic reflector antennas used in directional and monitoring.

Because this type of antenna has a relatively high gain, when used for electromagnetic compatibility EMC leakage measurement, it can effectively reduce the system noise figure. This is an important function when measuring small electromagnetic leakage.

The antenna has stable performance in a high-power environment, and can be used as a standard EMC test transmitting antenna instead of foreign products. The input power of the antenna is less than 300W and can produce a field strength of 200V / m at 1 meter.
