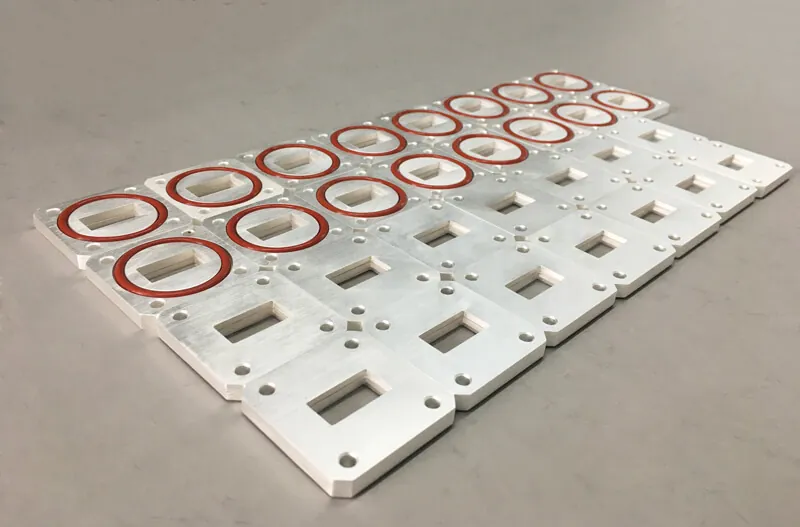

Dolph Microwave Components offers low and high waveguide Quartz / Mica pressure windows. All windows are polished and include iridite corrosion protection.
All windows are inspected with strict criteria that must be met or exceeded by our professionally staffed Quality Assurance Department prior to delivery.

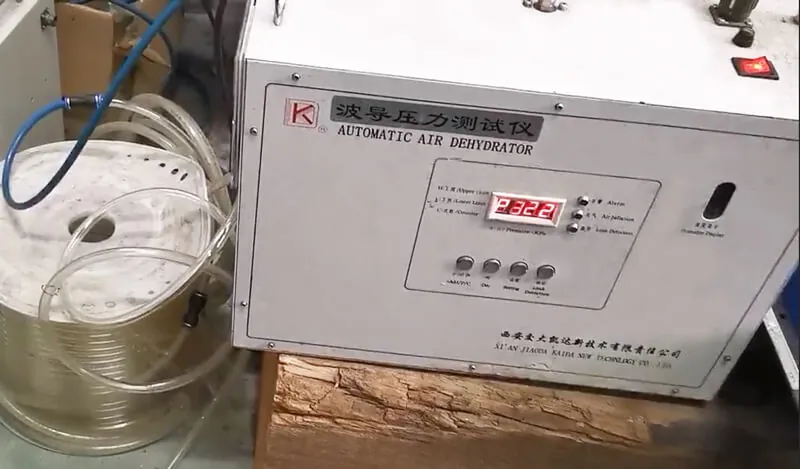

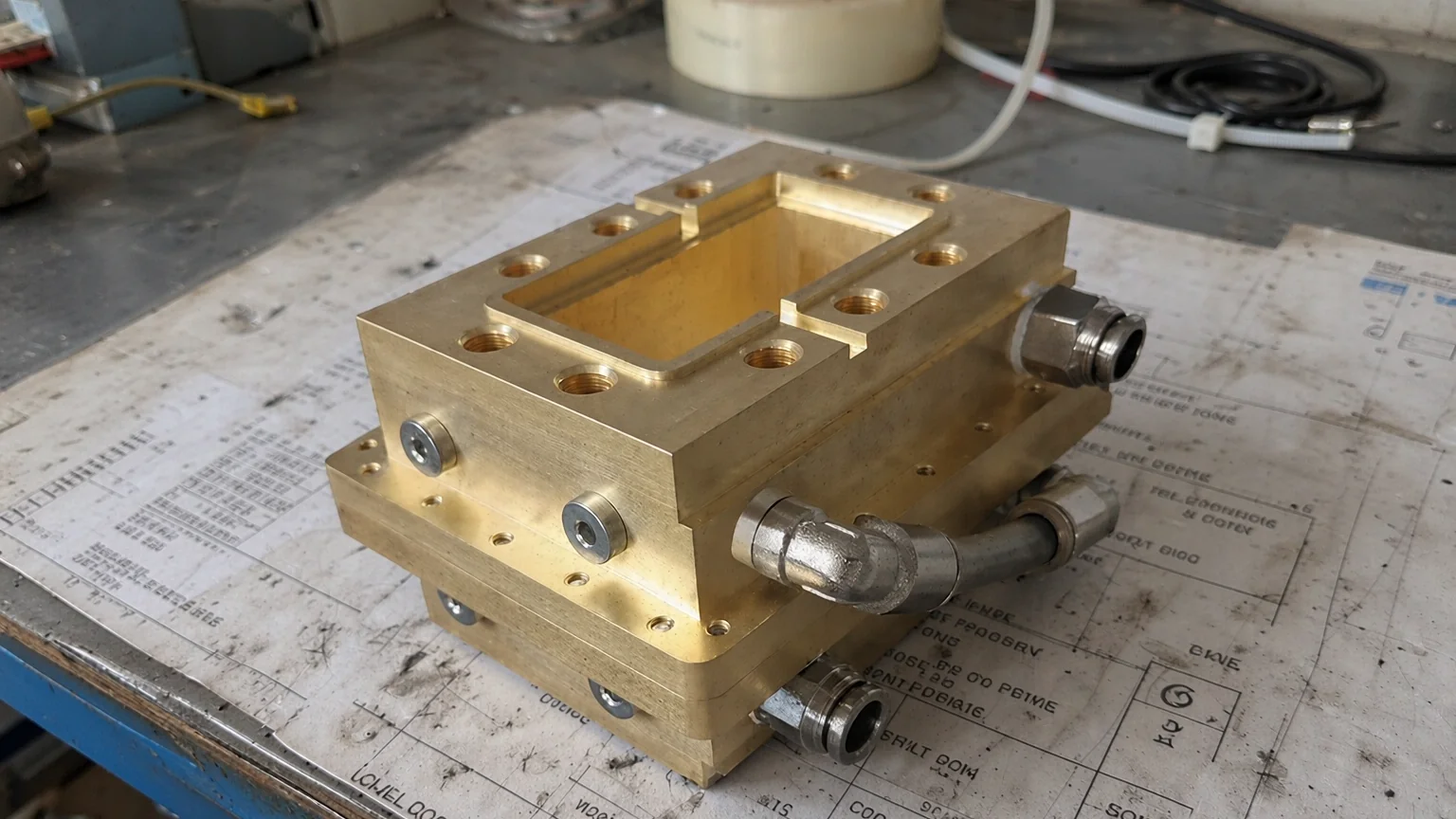

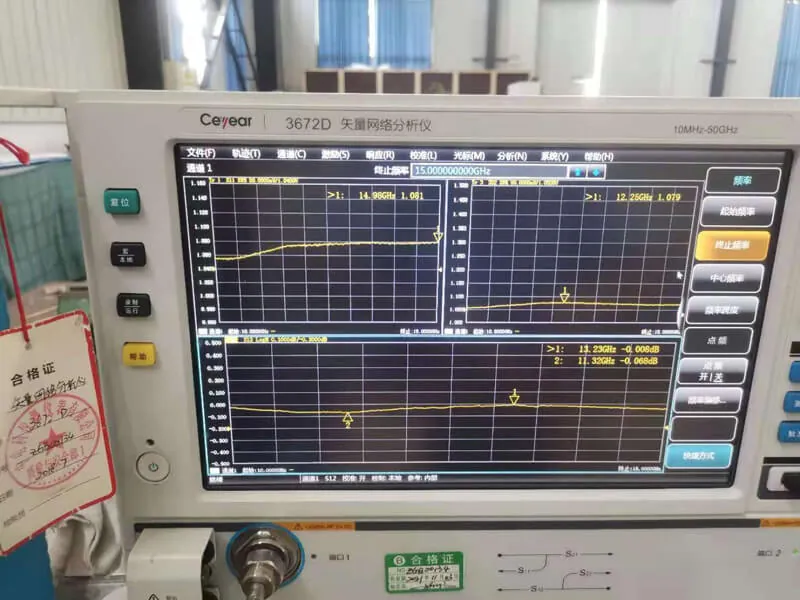

See below for WR75 pressure window and electrical performance and test results.
Model: DH-120WPWC5.08PMC
Frequency Range: 10.0-15.0 GHz
VSWR: 1.09 max
Power: 800W CW, Max
Peak Power: 200 kW
Pressure: 40 PSIG max
Flanges 1 and 2: Cover Groove / Cover
Material: Telfon/ Fibreglass / Quartz / Mica
Thickness: 5.08mm
If you do not see the configuration required for your high power & pressure microwave application, please contact Dolph Microwave Sales.
