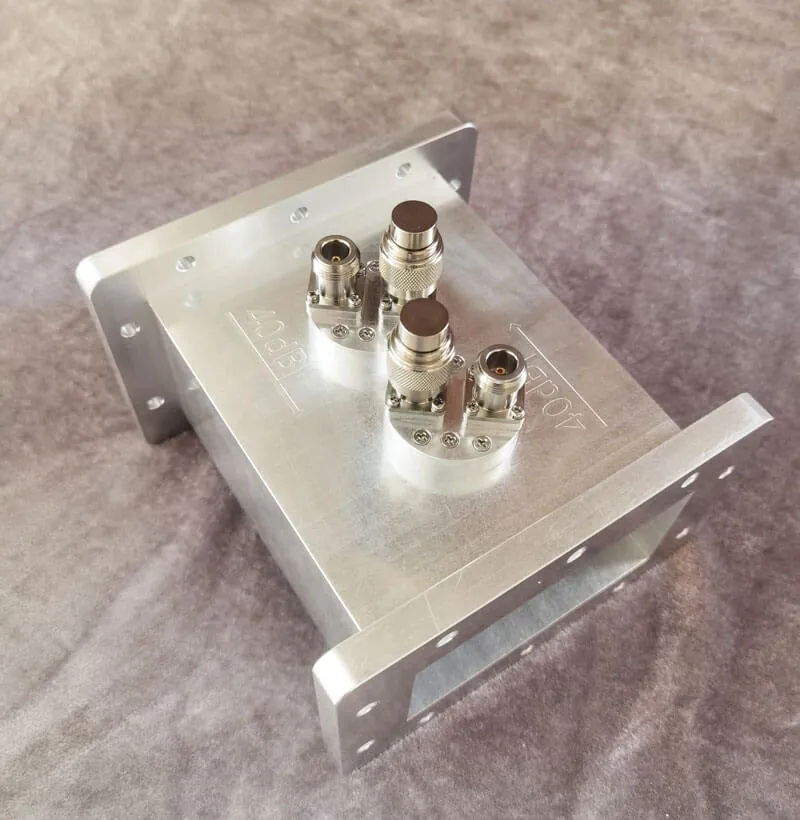

Dolph Microwave manufactures loop couplers covering a wide frequency range. Multiple flange and coaxial connector types and configurations are available. It’s ideal for RF microwave applications where high power sensing is desired.
It features small volume, low VSWR, low frequency response and major waveguide bandwidth. The coupling level can be custom made ranging from 30 dB to 70 dB. The directivity is above 20 dB. The flange type, connector type and sizes can be custom made as per customer’s specific requirements.
- Model: DH-26WHHC40NKPMA
- Frequency Range: 2.45±0.05MHz
- Coupling: 30/40/50/60 dB
- Dir. (Typ.): 15 dB
- VSWR (Mainline): 1.08
- VSWR (Sec.): 1.25
- Main Insertion: 0.1 dB
- Waveguide Type: WR340
- Flange type: FDP26 (Cover)
- Connector type: N Female
- Material: Al
- Inside finish: Chromate Conversion
- Outside finish: Anticorrosion Grey Paint

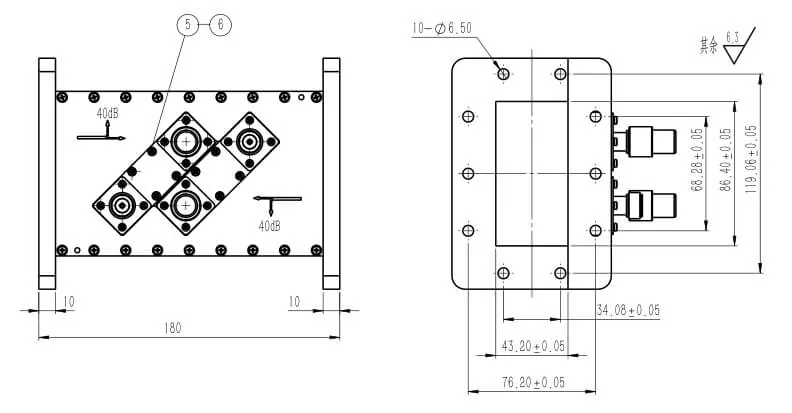

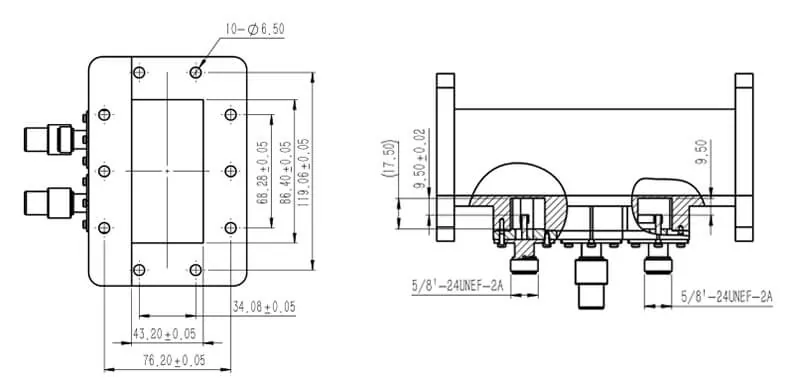

- Size(mm): 180*138*95
