Why Use Waveguide Components in Millimeter Wave Systems

Waveguides dominate mm-wave (26-100GHz) systems: their low loss (<0.1dB/m at 60GHz for rectangular types) beats microstrip, while high power handling (10s of W) suits radar/5G; tight field confinement ensures stable, high-fidelity signal transmission critical for long-reach links.

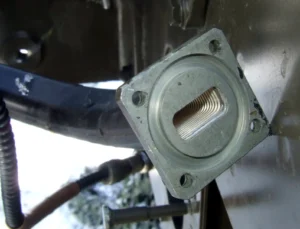

Extremely Low Transmission Loss

When the frequency jumps from the familiar 5GHz Wi-Fi to millimeter-wave bands like 28GHz, 60GHz, or even 94GHz, the loss of traditional coaxial cables and microstrip lines increases exponentially. A high-quality coaxial cable might have a loss of about 1 dB/m at 10GHz, but at 60GHz, this number deteriorates sharply to over 10 dB/m.

Waveguides, with their unique hollow structure, can have a typical loss as low as 0.05 dB/m at 60GHz, a difference of up to 200 times. This huge advantage in loss directly determines how far the signal can travel, the sensitivity of the system, and ultimately the overall cost and power budget.

Fundamental Difference in Loss Mechanisms

When the frequency reaches 60 GHz, every “waste” of signal in the transmission path is dramatically amplified. A circuit substrate material that performs well at 3 GHz might see its dielectric loss increase from a negligible 0.1 dB/cm to a catastrophic 1.5 dB/cm at 60 GHz.

Understanding why waveguides have low loss lies in analyzing how they cleverly avoid two “energy killers” that traditional transmission lines cannot solve: conductor loss and dielectric loss. This is not just a theoretical difference; it directly determines whether a 1-watt power amplifier can achieve a 500-meter link, or if one is forced to use an expensive 10-watt amplifier for only a 200-meter transmission.

How Conductor Loss Occurs

Imagine current flowing through a wire. At DC or low frequencies, the current is evenly distributed across the entire cross-section of the conductor, like multiple lanes on a highway with spacious traffic. But as the frequency increases to millimeter waves, the skin effect takes over. The electromagnetic field forces the current to squeeze tightly into an extremely thin layer on the surface of the conductor. The thickness of this layer is the skin depth.

• Key Parameter: Skin Depth. For a copper conductor, the formula for skin depth (δ) is approximately δ (μm) ≈ 66 / √f (GHz). This means:
  • At 10 GHz, δ is about 0.66 micrometers.
  • At 60 GHz, δ shrinks sharply to 0.27 micrometers.
  • At 100 GHz, δ is only 0.21 micrometers.

The current being confined to such a thin surface layer causes the effective resistivity of the conductor to soar. This effective resistance is inversely proportional to the skin depth.

The impact on microstrip lines/coaxial cables is fatal. Take a microstrip line with a characteristic impedance of 50 ohms as an example; the width of its center conductor might be only 0.3 mm. At 60 GHz, the effective cross-sectional area for current flow is merely a tiny rectangle with a height of 0.27 micrometers and a width of 0.3 mm. The resistance of this area can be hundreds of times greater than at low frequencies. The calculation result is brutal: on Rogers 4350B substrate, the conductor loss of a standard microstrip line can easily exceed 0.3 dB/cm at 60 GHz. A 10-cm long trace would consume 3 dB (half the power) just from conductor loss.

The clever part of a waveguide is that it has no “center conductor”. The electromagnetic wave propagates by reflecting and advancing in the form of a “field” within the metal cavity. Although current is also distributed on the inner wall of the waveguide, the broadside dimension of the waveguide is huge (for example, the broadside of a WR-15 waveguide is 3.76 mm), giving the current a distribution area far larger than that of a microstrip line. It’s equivalent to turning a congested single lane into a wide square, drastically reducing the resistance to charge flow.

The Dielectric is “Stealing” Your Signal Energy

Dielectric loss is often a more hidden “power killer” than conductor loss. When an alternating electromagnetic field passes through an insulating dielectric material, it forces the microscopic dipoles inside the material to constantly reorient and rub against each other. This process directly converts electromagnetic energy into heat energy, consuming it.

• Key Parameter: Loss Tangent. This parameter measures the efficiency with which a dielectric material “steals” energy. The larger the value, the higher the loss.
  • Ordinary FR-4 substrate: The loss tangent is about 0.02 at 10 GHz, but it worsens with increasing frequency, possibly exceeding 0.04 at 60 GHz. This is why FR-4 is basically unusable for millimeter-wave circuits.
  • High-performance high-frequency substrate (like Rogers RT/duroid 5880): The loss tangent is about 0.0009 (@10 GHz), which is excellent.
  • Air: The loss tangent is less than 0.000001, nearly perfect.

Microstrip lines confine the signal field between the conductor and the dielectric substrate. This means that most of the electromagnetic energy propagates inside the dielectric, making dielectric loss unavoidable. For a microstrip line on Rogers 5880 substrate at 60 GHz, the contribution of dielectric loss could be as high as 0.2 dB/cm.

The interior of a waveguide is typically air. The millimeter-wave signal propagates primarily in the air dielectric within the waveguide, avoiding interaction with a solid dielectric. That negligible dielectric loss of air can be completely ignored in engineering applications. Some precision waveguide components have internal silver or even gold plating (gold’s conductivity is more stable than silver’s above 100 GHz, but it is extremely expensive), reducing the already low conductor loss by another 5% to 10%, but this is already in the realm of pursuing ultimate performance.

An Unfair Comparison

Let’s examine this contest with specific numbers. Consider a 30-centimeter long transmission line operating at a frequency of 94 GHz (W-band, commonly used for automotive radar and imaging):

• Option A: High-performance microstrip line circuit (based on Rogers 6002 substrate, thickness 0.127 mm). The total transmission loss (conductor + dielectric) from simulation is typically between 15 dB and 25 dB. This means that for an input power of 1 watt (30 dBm), the output is only 3.2 milliwatts to 30 milliwatts. The system efficiency drops below 1%.
• Option B: Standard rectangular waveguide (WR-10). The total transmission loss is about 1.5 dB. With 1 watt input, the output is about 700 milliwatts. Efficiency remains at 70%.

Quantitative Comparison

In the 28 GHz band, the insertion loss of a 20 cm long high-quality coaxial cable (e.g., 0.047″ diameter) could be as high as 4 dB. This means that 60% of the energy from the power amplifier’s 2-watt (33 dBm) output is wasted before reaching the antenna, leaving only 0.8 watts.

For a standard waveguide (WR-28) of the same length, the loss can easily be controlled within 0.4 dB, transmitting over 91% of the power effectively. This 3.6 dB difference is worth a fortune in the link budget: it might directly determine whether a 5G base station’s coverage radius is 300 meters or 500 meters, or whether an imaging radar can distinguish a pedestrian from a vehicle at 200 meters.

Loss Comparison of Three Transmission Line Types

We select three representative millimeter-wave frequency points—28 GHz (5G mmWave), 60 GHz (WiGig/point-to-point communication), and 94 GHz (automotive radar/imaging)—for a side-by-side comparison. The scenario assumes a 15-centimeter transmission distance from the chip output to the antenna.

Interpreting what these numbers mean:

• Catastrophic Attenuation: At 94 GHz, a 15 cm coaxial cable consumes 10 dB of power, meaning 90% of the energy is converted into heat along the path. A 100 mW power amplifier delivers only 10 mW to the antenna.
• Waveguide’s Dominant Performance: Across all frequency bands, the waveguide’s loss is below 1.2 dB, maintaining power transmission efficiency always above 75%. A loss of 1.2 dB at 94 GHz means that with 100 mW input, the output is still a high 76 mW.
• The Limit of Planar Circuits: Even high-performance thin-substrate microstrip lines struggle above 60 GHz. A loss of 4.5 dB (64.5% energy loss) is already an optimized result, and this is just from the antenna feedline alone.

How Loss Eats Your Budget

Link budget is not just theoretical; it directly translates into the system’s Size, Weight, Power, and Cost (SWaP-C).

Scenario: Designing a 60 GHz point-to-point communication link requiring an output power of 20 dBm (100 mW) at the transmit antenna port. The transmission path length is 25 centimeters.

• Option A (Using Waveguide):
  • Path loss = 0.75 dB/m * 0.25 m = 0.19 dB.
  • Required Power Amplifier (PA) output power = 20 dBm + 0.19 dB ≈ 20.2 dBm (approx. 105 mW). You can choose a very small, cheap, low-power PA chip to achieve this.
• Option B (Using High-Performance Microstrip Line):
  • Path loss = 4.5 dB/m * 0.25 m = 1.125 dB.
  • Required PA output power = 20 dBm + 1.125 dB ≈ 21.125 dBm (approx. 130 mW). The requirement for the PA instantly increases.
• Option C (Using Coaxial Cable Connection):
  • Path loss = 6.8 dB/m * 0.25 m = 1.7 dB.
  • Required PA output power = 20 dBm + 1.7 dB ≈ 21.7 dBm (approx. 148 mW).

Magnifying the Difference: Option C requires the PA to output about 40% more power than Option A. In the millimeter-wave band, this 40% power increment means:

1. Increased Chip Cost: A larger power amplifier die is needed, potentially increasing chip cost by 20%-50%.
2. Increased Power Consumption: Higher total system power consumption, posing greater demands on the power supply and heat dissipation.
3. Linearity Challenge: The PA operating at higher output power may have degraded linearity, requiring more complex predistortion algorithms, increasing digital processing overhead and cost.

Very High Power Handling Capacity

Whether it’s an airborne fire-control radar needing to detect stealth targets hundreds of kilometers away, or a satellite ground station transmitting signals to a geostationary orbit 36,000 kilometers high, the system’s Effective Radiated Power (ERP) directly determines its core performance.

When the frequency rises above 30 GHz, the power bottleneck of traditional coaxial cables immediately appears: at 40 GHz, the average power handling capacity of a standard coaxial cable with a 2.4 mm interface might be only tens of watts. The central conductor in its cross-section, thin as a hair, is highly susceptible to corona discharge or even instant vaporization under high peak power (like megawatt radar pulses).

The Core of Power Handling Capacity

For a system operating at 38 GHz, a coaxial cable might only withstand about 5000 volts around its center conductor, while a waveguide of comparable size can comfortably handle electric field strengths above 50,000 volts.

How Electrical Breakdown Occurs

When the electric field strength is high enough, for example, reaching the breakdown threshold of air, approximately 3 x 10^6 V/m (i.e., 30 kV/cm), the struck molecules ionize, releasing new electrons. These new electrons continue to be accelerated and collide, generating an exponentially growing number of electron-ion pairs like an avalanche within an extremely short time (on the order of nanoseconds), forming a conductive plasma – an electrical breakdown has occurred.

Why Size Determines Everything

The power handling capacity (P_max) is proportional to the square of the maximum electric field strength (E_max) the system can withstand and also proportional to the effective cross-sectional area (A) of the transmission line. The formula can be simplified to P_max ∝ (E_max)² * A.

1. The “Wide Road” Effect of Waveguides: Take the standard rectangular waveguide WR-28 (used for 26.5 to 40 GHz) as an example. Its internal broad wall dimension a = 7.112 mm, and its narrow wall dimension b = 3.556 mm. The electric field is mainly distributed between the broad walls. In comparison, a standard 2.92mm coaxial connector for the same frequency band might have a center conductor diameter of only 0.51 mm, with a very small gap to the outer conductor. When transmitting the same 100 watts of power, the electric field strength at the center of the waveguide’s broad wall might be only 10 kV/cm, leaving ample safety margin (e.g., more than 3 times) from the air breakdown threshold. The electric field strength on the surface of the coaxial line’s center conductor might already approach 25 kV/cm, making it more prone to problems.
2. The Value of Surface Finish: Any microscopic burrs on the metal surface cause electric field concentration, significantly reducing the actual breakdown threshold. A waveguide inner wall with precision machining and a surface roughness better than 0.8 micrometers will have a breakdown field strength 15% to 20% higher than a surface with a roughness of just 3.2 micrometers.

Power Density

Engineers must distinguish between two distinctly different power scenarios.

• Average Power: Dominated by thermal effects. The loss of the transmission line itself (conductor loss, dielectric loss) converts part of the transmitted power into heat. The waveguide’s massive metal structure itself is an efficient heat sink. For example, a waveguide transmitting an average power of 500 watts might have a wall loss of about 5%, generating 25 watts of heat. Due to its huge surface area, its temperature rise can be easily controlled within 30°C through natural convection or forced air cooling. A coaxial cable, due to its small volume and poor thermal conductivity of the dielectric, might see its internal temperature rise sharply to over 100°C with the same 25 watts of heat, potentially melting the dielectric and damaging the structure.
• Peak Power: Dominated by electrical breakdown, especially in pulsed applications like radar. An air traffic control radar might emit a pulse with a width of 1 microsecond and a peak power as high as 1 Megawatt (MW). Although the average power might be only 2000 watts, during that brief 1 microsecond, the electric field strength peaks.

The Dielectric is an Invisible Killer

Coaxial cables must rely on solid dielectric (like PTFE) to support the center conductor. These dielectric materials have two fatal weaknesses at millimeter-wave frequencies: First, their relative permittivity (ε_r, PTFE is about 2.1) is higher than air, which itself causes electric field concentration within the dielectric, reducing the breakdown field strength to 20-40 kV/cm, much lower than air’s 30 kV/cm.

Second, the dielectric itself has loss, converting part of the high-frequency energy into heat, further exacerbating the risk of thermal breakdown. The interior of a waveguide is typically dry air or filled with an inert gas (like SF6), whose dielectric loss is nearly zero, and the breakdown field strength is comparable to or even higher than air (SF6’s breakdown field strength can be 2-3 times that of air).

Dielectric Loss and Thermal Management

A 200-watt average power signal at 38 GHz, transmitting one meter through a coaxial cable with a loss of 1.2 dB, means nearly 25% (about 50 watts) of the power is directly converted into heat. This is enough to cause the cable’s core temperature to soar above 120°C within minutes, leading to dielectric softening and characteristic impedance distortion.

Dielectric Loss

Any non-ideal dielectric, under the influence of an alternating electric field, experiences internal molecules or dipoles constantly trying to reorient. The friction associated with this process against surrounding molecules generates heat, consuming electromagnetic energy.

1. Loss Tangent: The Gauge Measuring a Dielectric’s “Heat Appetite”: This is the most critical material parameter. The loss tangent (tanδ) of vacuum or dry air is below 10^-5, nearly perfect. The tanδ of PTFE, commonly used in coaxial cables, is about 0.0015 at 30 GHz. This means that at millimeter-wave frequencies, a significant proportion of the electromagnetic wave’s energy is absorbed by the dielectric material and converted into heat over a distance. A specific example: a flexible coaxial cable with an outer diameter of 3.58 mm has a loss of up to 1.8 dB per meter at 40 GHz. If you input 100 watts of power, only 66 watts reach the other end, and 34 watts of power directly turn into heat inside the cable. This thin cable instantly becomes a “heater”.
2. The “Hollow Core” Advantage of Waveguides: Standard waveguides are filled with dry air or an inert gas, whose tanδ is extremely low, making dielectric loss theoretically negligible. The main loss in a waveguide comes from conductor loss on the metal inner wall. Taking the WR-28 waveguide as an example again, the typical loss per meter at 40 GHz is only 0.11 dB. Transmitting 100 watts of power generates only about 2.5 watts of heat. These 2.5 watts of heat are spread over a metal cavity one meter long with a surface area exceeding 20 square centimeters, resulting in a negligible temperature rise.

Thermal Management

Once heat is generated, how efficiently it is conducted away from critical parts and dissipated into the environment directly determines the system’s average power handling capacity and long-term reliability.

• Inherent Deficiency of the Coaxial Structure: The thermal path in coaxial cables is very poor. Heat is generated inside the dielectric material surrounding the center conductor, and the dielectric is usually a poor thermal conductor (PTFE’s thermal conductivity is about 0.25 W/(m·K)). Heat must first pass through the dielectric layer to reach the outer conductor and then dissipate into the air. This process has very high thermal resistance, making it easy for internal heat to accumulate, creating local hot spots. This is why high-power coaxial connectors often specify a average power-temperature derating curve; their power handling capacity might need to be halved when the ambient temperature exceeds 65°C.
• The Waveguide’s “Integrated Heat Sink” Design: The waveguide itself is a massive metal block. Its thermal management path is extremely superior:
  • Huge Heat Dissipation Surface Area: Heat generated on the metal inner wall can be directly conducted through the waveguide wall (often 1-2 mm thick) to the entire component’s outer surface. Taking brass as an example, its thermal conductivity is as high as 120 W/(m·K), which is 480 times that of PTFE. This means heat can quickly diffuse from the inside to the entire metal structure.
  • Active Cooling Capability: For systems with average power exceeding 500 watts, waveguides can easily integrate active cooling solutions. The most common is installing a water-cooling plate on the outside of the waveguide. Coolant (typically a water-glycol mixture) flowing at a rate of several liters per minute carries away the heat, stabilizing the waveguide wall temperature around 40°C, even when transmitting thousands of watts of average power internally. Another option is forced air cooling, adding fins and a fan to the outside of the waveguide, which can improve heat dissipation efficiency by 5 to 10 times compared to natural convection.

Thermal Expansion and Performance Drift

Heat brings not only the risk of overheating damage but also more precise performance drift issues. Metal materials have a coefficient of thermal expansion; for example, aluminum’s coefficient is about 23 x 10^-6 /°C.

• An aluminum waveguide with a length of 300 mm will expand by 300 mm * 50°C * 23×10^-6 /°C = 0.345 mm when its temperature rises from 20°C to 70°C.
• This tiny change in size is enough to shift the passband frequency of a waveguide filter with a center frequency of 32 GHz by tens of megahertz (MHz) towards lower frequencies. For a communication system with channel spacing of only 100 MHz, such drift is unacceptable.
• Therefore, high-precision waveguide components use special alloys with matched thermal expansion coefficients (like Invar), or employ active temperature control (TEC) to keep the component temperature fluctuation within ±1°C, ensuring long-term stability of electrical performance.

In millimeter-wave high-power systems, managing heat is managing performance. Choosing a waveguide, to a large extent, means choosing a naturally superior thermal management path. It fundamentally reduces the loss source through its physical structure and provides unparalleled heat dissipation capability, ensuring stable output over the system’s 10-year design life.

High Q Factor and Excellent Frequency Selectivity

As the battlefield of wireless communication advances into the millimeter-wave band, such as the 28GHz defined by 5G NR or the 77GHz used by automotive radar, the spectrum becomes extremely crowded. At 77GHz, each automotive radar channel typically has only 500MHz to 1GHz of bandwidth, and adjacent channel spacing can be as small as 100MHz.

At this point, traditional PCB-based planar circuits (like microstrip filters), due to their inherent loss, typically have an unloaded quality factor (Q factor) in the range of 200-500. This results in slow filter roll-off. A resonator with a Q factor of only 300 has an inherent bandwidth of 250MHz at a center frequency of 77GHz. This is like using a blunt knife to cut a delicate cake, inevitably leading to signal mixing and inter-channel interference.

Metal waveguide resonant cavities, benefiting from their electromagnetic fields propagating in an air dielectric, can easily achieve unloaded Q factors ranging from 8,000 to 15,000 in the W-band (75-110 GHz).

Q Factor Definition

Consider designing a filter with a bandwidth of 100MHz in the 28GHz band. If using planar resonators with an unloaded Q factor (Qu) of 300, the theoretically maximum achievable Q factor (i.e., the filter’s loaded Q factor QL) will be severely limited, typically QL can only reach around 150. This leads to degraded filter shape factor and slow roll-off.

Whereas a waveguide resonant cavity with a Qu as high as 8,000 can easily achieve a design with QL=100. Its passband insertion loss can theoretically be as low as 0.2dB, compared to potentially over 3dB for non-waveguide solutions. This nearly 3dB difference means half of the transmit power is wasted as heat. The Q factor directly determines system energy consumption, spectrum utilization efficiency, and cost.

Deconstructing the Two Core Definitions of Q Factor

The Q factor has two equivalent definitions, revealing its physical essence from different angles.

1. Frequency Selectivity Definition: Q = f₀ / Δf₋₃dB

This definition is most commonly used in filter design. Here, f₀ is the center frequency, and Δf₋₃dB is the -3dB bandwidth. It describes the resonator’s ability to distinguish frequencies.

• Example: If a resonator measured at 10GHz has a -3dB bandwidth of 10MHz, then its Q factor is 1000. This means that signals within approximately ±5MHz around the 10GHz point can pass effectively; beyond this range, signals are strongly suppressed.
• Millimeter-wave Scenario: At 60GHz, a resonator with a Q factor of 500 has a natural bandwidth of 120MHz. A resonator with a Q factor of 10,000 has a bandwidth of only 6MHz. In a dense spectrum environment where channel spacing might be only 50MHz, a 120MHz bandwidth means it’s fundamentally impossible to effectively isolate adjacent channels, while a 6MHz bandwidth provides precise channel slicing capability.

2. Energy Conservation Definition: Q = 2π × (Total Stored Energy) / (Energy Lost Per Cycle)

This definition more profoundly reveals the essence of the Q factor, which is energy storage efficiency.

• Total Stored Energy (W_stored): In the resonant cavity, energy cyclically exchanges between electric and magnetic fields. In a waveguide cavity, this energy is distributed in the electromagnetic field throughout the cavity’s volume.
• Energy Lost Per Cycle (W_loss_per_cycle): Each oscillation cycle, energy is lost as heat in the metal walls (conductor loss) or leaked to the outside (radiation loss). For enclosed waveguide cavities, radiation loss is negligible; conductor loss is the main cause.
• Calculation Example: Assume a cubic waveguide cavity stores 1 microjoule (μJ) of energy at 30GHz. If measured energy loss per cycle is 0.1 nanojoules (nJ), then its Q factor = 2π * (1 μJ) / (0.1 nJ) = 2π * 10,000 ≈ 62,800. This large number intuitively indicates that energy must oscillate more than 10,000 cycles in the cavity before it significantly attenuates.

The “Culprits” Behind Energy Loss

A low Q factor means energy is lost quickly. These losses primarily occur through three pathways:

1. Conductor Loss – The Waveguide’s “Main Battlefield”

This is the largest source of loss in waveguides, determined by the finite conductivity (σ) of the metal inner wall and the skin effect (δ).

• Skin Depth (δ): Current does not flow uniformly inside the conductor but is concentrated in a very thin layer on the surface. The skin depth δ = √(2 / (ω μ σ)), where ω is the angular frequency, μ is the permeability, and σ is the conductivity.
  • At 10GHz, the skin depth for copper is about 0.66 micrometers.
  • At 100GHz, the skin depth reduces to about 0.21 micrometers. The higher the frequency, the smaller the effective cross-sectional area for current flow, and the greater the resistance.
• Influence of Surface Roughness: The current path lengthens due to surface unevenness. Experience shows that when the surface roughness (Ra) is comparable to the skin depth (δ), conductor loss increases by 50% to 100%. This is why millimeter-wave waveguide inner walls require mirror-level polishing (Ra < 0.1 µm).

2. Dielectric Loss – Almost Negligible in Waveguides

For air-filled waveguides, dielectric loss mainly comes from the weak absorption of electromagnetic waves by air molecules, which is usually negligible below 35GHz. For microstrip lines, a significant portion of the electromagnetic field is distributed within the dielectric substrate, and its loss is determined by the substrate’s loss tangent (tanδ). The dielectric loss of a common FR-4 substrate (tanδ ≈ 0.02) is an order of magnitude higher than that of Rogers 4350B (tanδ ≈ 0.003).

3. Radiation Loss – Advantage of the Enclosed Structure

A waveguide is a completely shielded metal structure, theoretically having no energy radiated out, so radiation loss is zero. Open structures like microstrip lines always have some energy radiated into free space as electromagnetic waves, especially at discontinuities (like bends, gaps), further reducing their effective Q factor.

Direct Mapping from Q Factor to System Performance

A high Q factor is not an isolated excellent parameter; it directly translates into measurable system-level advantages:

• Filter Insertion Loss (IL): The passband insertion loss of a filter is directly related to its loaded Q factor (QL) and the unloaded Q factor (Qu) of its resonators. The approximate formula is: IL ≈ 4.34 × (QL / Qu) dB (per resonator section). If a filter has QL=100, and the resonator’s Qu=1000, then the single-section insertion loss is as high as 4.34 * (100/1000) = 0.434 dB. If Qu is increased to 10,000, the single-section loss drops to 0.0434 dB. The total loss difference for a fourth-order filter could be over 1.5 dB, directly affecting the system’s link budget and power consumption.
• Oscillator Phase Noise: Leeson’s formula describes the relationship between phase noise £(Δf) and the Q factor: £(Δf) ∝ 1 / (Q²). Specifically, the phase noise improvement at an offset Δf from the carrier is 20log(Q2/Q1) dB. Improving the resonator Q factor of an oscillator from 500 to 5000 will improve its phase noise by 20dB. This means that at a 1MHz offset, the phase noise can improve from -100 dBc/Hz to -120 dBc/Hz, which is crucial for demodulating high-order modulations (like 64-QAM, 256-QAM), significantly reducing the bit error rate.

Where Does the Waveguide’s High Q Factor Come From?

Taking the standard WR-15 waveguide (used for 50-75GHz) as an example, its internal cross-sectional dimensions are 3.76mm x 1.88mm. When transmitting a 60GHz signal (wavelength 5mm), the electric field of the dominant TE10 mode is strongest at the center of the broad wall, where the energy density is highest. The key point is that the current distribution on the inner wall of the waveguide is extremely non-uniform: near the centerline of the broad wall, the current density is almost zero; the current is mainly concentrated on the sidewalls and the narrow walls of the waveguide.

Quantitative analysis shows that at 60GHz, the loss per meter for a good quality waveguide can be lower than 0.1dB, while the best performing microstrip lines often exceed 0.5dB/m. This more than 5-fold difference in loss directly leads to an order of magnitude difference in Q factor.

Propagation Mode is the Foundation

Unlike two-conductor transmission lines, waveguides rely on specific field patterns (modes). Taking the most common rectangular waveguide TE10 mode as an example:

• Electric Field (E-field): The vector is perpendicular to the broad walls, with maximum amplitude at the center of the broad wall (at a/2), sinusoidally decaying to zero towards the edges. This means that along the centerline of the waveguide’s broad wall, there is almost no electric field component perpendicular to the direction of current flow, hence the wall current density in this region is nearly zero.
• Magnetic Field (H-field): Forms closed loops, generating wall currents parallel to the waveguide axis and in the vertical direction.
• Net Effect: The current is not uniformly distributed over the entire inner wall surface but “intelligently” avoids the region of strongest electric field in the center, flowing mainly along the sidewalls and the upper/lower narrow walls. This “avoiding the heavy and focusing on the light” distribution drastically reduces the effective current path area, thereby significantly lowering the ohmic loss caused by metal resistance. This low-loss characteristic, determined by the mode itself, is an inherent advantage of waveguides.

Reducing Energy Density

The physical size of millimeter-wave waveguides (on the order of millimeters), although small, is two orders of magnitude larger in cross-sectional area compared to the micron-scale traces of planar circuits.

• Energy Volume: Electromagnetic energy is distributed within the volume defined by the waveguide’s entire internal cross-section (e.g., 3.76mm²) multiplied by the wavelength. The energy of a microstrip line is tightly confined in the tiny dielectric region between the conductor strip (only about 0.2mm wide) and the ground plane.
• Energy Density: For the same transmitted power, the energy density per unit volume (units: J/m³) inside the waveguide is much lower than in a microstrip line. Lower energy density means lower electric and magnetic field strengths, which directly weakens the “driving force” causing losses in the metal walls and dielectric. For a given dielectric material, the power loss per unit volume is proportional to the square of the electric field strength. Therefore, distributing energy over a larger space is one of the most effective physical methods to reduce loss.

Air is a Nearly Perfect Insulator

The primary dielectric inside a waveguide is air, with a relative permittivity εr of about 1.0006 and a loss tangent (tanδ) less than 10^(-4) below 10GHz, rising to only about 10^(-3) at 100GHz. This loss value is an order of magnitude lower than the best commercial PCB substrate materials (like Rogers RT/duroid 5880 with tanδ ≈ 0.0009).

• Comparison: In a microstrip line, a significant proportion (typically 20%-50%, depending on the substrate’s permittivity) of the electromagnetic field energy is distributed within the lossier dielectric substrate. This portion of energy is irreversibly converted into heat through mechanisms like dielectric polarization relaxation.
• Waveguide Advantage: For air-filled waveguides, the contribution of dielectric loss is typically two orders of magnitude smaller than conductor loss and can be completely ignored in most engineering calculations. This means designers can focus solely on optimizing the conductor surface, greatly simplifying the complexity of high-Q design.

Surface Treatment

When frequency enters the millimeter-wave band, the skin depth (δ) decreases sharply. At 100GHz, the skin depth of copper is only about 0.21 micrometers (µm). At this point, current is compressed to flow within a layer much thinner than a human hair (diameter 50-100µm).

• Effect of Surface Roughness (Ra): If the surface roughness (Ra) of the metal inner wall is comparable to the skin depth (δ), the current path is effectively lengthened as it winds along the uneven surface, increasing the equivalent resistance.
• Quantitative Relationship: Empirical formulas indicate that the increase factor for conductor loss due to surface roughness can be approximated as [1 + (2/π) * arctan(1.4 * (Ra/δ)^2]. When Ra = δ, the theoretical loss is about 1.7 times that of an ideally smooth surface; when Ra = 2δ, the loss may increase to over 2.5 times.
• Engineering Practice: Therefore, high-Q waveguides used in the E-band (60-90GHz) or D-band (110-170GHz) must have their inner walls precision polished or plated, requiring a surface roughness Ra better than 0.1µm, even achieving a mirror finish of 0.05µm. Every reduction of 0.05µm in Ra value can bring a 5%-10% improvement in Q factor above 100GHz.

Material Selection

Once surface finish meets the standard, the bulk electrical conductivity (σ) of the metal itself becomes the decisive ultimate factor. Loss is inversely proportional to √σ.

• Benchmark: Oxygen-Free High Conductivity (OFHC) copper is a common benchmark, with a conductivity of about 5.8 x 10^7 S/m.
• Upgrade Path:
  1. Silver Plating: Silver has the highest bulk conductivity of all metals (~6.3 x 10^7 S/m). Plating a dense silver layer 3-5µm thick on the inner wall of a copper waveguide can increase the Q factor by about 5%.
  2. Gold Plating: Although gold’s conductivity (~4.5 x 10^7 S/m) is lower than copper’s, its exceptional oxidation and corrosion resistance ensures performance does not degrade over long-term use. In aerospace applications requiring extremely high reliability, gold plating is the preferred choice, even though its initial Q factor is about 15% lower than silver plating.
  3. Aluminum Alloy: For weight-sensitive applications (like satellite-borne, airborne), high-strength aluminum alloys (like 6061, 5052) with inner walls plated with copper or gold are used to manufacture waveguides. Although aluminum’s bulk conductivity (~3.5 x 10^7 S/m) is lower, as long as the plating is thick enough (>5 times the skin depth, i.e., >1.5µm @100GHz), its performance can be very close to that of all-copper or all-silver waveguides, while achieving lightweight.

How High Q Translates into Performance

A resonator with a Q factor of 10,000 has a -3dB bandwidth of only 3.8MHz at a center frequency of 38GHz. But how does this 3.8MHz narrow bandwidth affect a communication channel with a bandwidth of 400MHz? The key lies in the filter’s shape factor, which is determined by the resonator’s unloaded Q factor (Qu).

A fourth-order Chebyshev waveguide filter, with a Qu of 12,000, can achieve a shape factor of 1.5 (BW-40dB / BW-3dB). This means that for a 400MHz passband, the attenuation can reach 40dB at a distance of only (1.5 * 400 – 400)/2 = 100MHz from the passband edge.

Whereas a planar filter with Qu=500 might have a shape factor greater than 3, requiring a distance of (3 * 400 – 400)/2 = 400MHz to achieve the same level of suppression. This 300MHz difference directly determines whether spectrum utilization can be doubled and whether adjacent channel interference can be suppressed below the receiver’s noise floor.

Filters

The core value of a filter is to distinguish between the “desired” signal and “interfering” signals. The contribution of high Q is twofold:

1. Very Low Passband Insertion Loss: The passband loss of a filter is proportional to (Qu / QL), where QL is the filter’s designed loaded Q factor. Designing a filter with a center frequency of 28GHz and a bandwidth of 200MHz gives a QL of about 140. If the resonator’s Qu is 1,000, the loss introduced by a single resonator is about 0.6dB; if Qu is increased to 10,000, the single-resonator loss drops to a negligible 0.06dB. The total loss difference for a fourth-order filter can be over 2dB, which directly translates into a 2dB gain in the system link budget, or allows a 35% reduction in transmitter power.
2. Creating a “Cliff-like” Transition Band: High Qu allows designers to use more aggressive techniques (like introducing transmission zeros) to optimize the filter response. By artificially introducing a very deep transmission zero (e.g., >60dB suppression) near the passband, the passband can be protected like building a wall around it. For example, in the 28GHz band, a four-cavity waveguide filter with symmetric transmission zeros can achieve 60dB suppression at ±150MHz from the passband edge, while the passband ripple remains less than 0.1dB.

Frequency Sources

The phase noise of an oscillator determines the demodulation performance of a communication system and the target resolution capability of a radar. Leeson’s formula clearly reveals its relationship with the Q factor: £(Δf) ∝ 1 / (Q²).

• Quantitative Improvement: Improving the Q factor of an oscillator’s resonator from 400 (typical planar resonator) to 4,000 (typical waveguide cavity) improves its phase noise by 20log(4000/400) = 20dB.
• System-Level Impact: A 20dB improvement in phase noise at a 100kHz offset from the carrier (e.g., from -95 dBc/Hz to -115 dBc/Hz) means that for a system using 64-QAM modulation, the Bit Error Rate (BER) can drop from an unacceptable level of 10^-3 to better than 10^-8 under the same Signal-to-Noise Ratio (SNR). This is equivalent to extending the communication distance by about 40%, or allowing the use of a higher-order modulation scheme (like 256-QAM) to increase data throughput by about 33%, without increasing transmit power or antenna gain.

Diplexers and Multiplexers

In TDD (Time Division Duplex) systems, transmission and reception share the same frequency. But in FDD (Frequency Division Duplex) or satellite payloads, transmission and reception occur simultaneously and at very close frequencies. The task of a diplexer is to provide isolation exceeding 80dB at very close frequency points (e.g., Tx/Rx separation of only 100MHz @30GHz), preventing the transmitter’s large signal from blocking the sensitive receiver.

• Mechanism: Waveguide diplexers utilize the very narrow band-stop (notch) created by high-Q resonant cavities to achieve isolation. A resonant cavity with a Q factor of 20,000 has a notch bandwidth of only 1.5MHz at 30GHz, but its stopband depth can easily exceed 60dB.
• Engineering Design: By cleverly coupling such high-Q cavities to the transmit and receive ports, a suppression band with a depth of 90dB and a width of tens of MHz can be formed centered on the receive frequency. This ensures that a receiver, located only 0.3% (100MHz@30GHz) away from the transmit frequency, can operate in a weak signal environment where the power might be as low as 1 picowatt (-90dBm), unaffected by the adjacent transmit signal which could have a power as high as 10 watts (+40dBm). This 130dB power difference relies entirely on the near-absolute frequency selectivity provided by the high-Q resonant cavities.

Measurement and Sensing

A high-Q resonant cavity itself is an extremely sensitive frequency (or wavelength) detector.

• Wavemeter/Frequency Meter: When a signal of unknown frequency excites a waveguide resonant cavity, a strong response occurs at its resonant frequency f0. The measurement accuracy δf / f0 is inversely proportional to Q. A cavity with Q=15,000 can achieve an absolute frequency measurement accuracy of ±110GHz / 15000 = ±7.3MHz at 110GHz. This accuracy is sufficient to resolve the frequency shift caused by a Doppler effect corresponding to a target speed change of only 0.2 meters/second.
• Material Sensing: If a material sample under test (like gas, liquid) is introduced into the waveguide cavity, it changes the cavity’s resonant frequency f0 and Q factor. The frequency shift Δf is proportional to the sample’s permittivity, while the change in Q factor (increase in loss) reflects the sample’s loss tangent. Because the initial Q value is extremely high, even tiny losses introduced by the sample can be clearly detected, with sensitivity reaching parts per million (ppm) levels.
