The 5 main challenges in waveguide antenna manufacturing are maintaining precise internal surface roughness (often under 1µm), achieving tight dimensional tolerances (±0.05mm), managing complex assembly and alignment, selecting suitable high-cost materials like copper, and ensuring efficient heat dissipation for high-power applications.
Table of Contents
Precise Dimension Control
Even a tiny error, say a deviation of just 0.05 mm, can throw the entire antenna’s performance off. We’re talking about a potential signal loss of up to 15% or more if the internal waveguide path isn’t machined to exact specifications. For a standard 26 GHz antenna, the required surface finish often needs to be smoother than 0.8 µm Ra to avoid scattering signals.

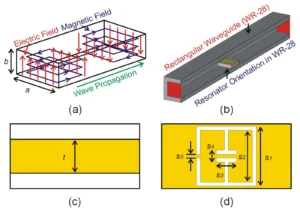

Most manufacturers work with tolerances in the range of ±5 to ±10 micrometers for critical dimensions like the broadwall and narrowwall widths. For example, a WR-75 waveguide must maintain an internal cross-section of 19.05 mm x 9.525 mm. Going beyond a ±20 µm tolerance here can shift the operational frequency, causing a return loss worse than -15 dB, which is simply unacceptable for most commercial applications.
| Common Defect | Typical Dimensional Error | Resulting Performance Impact |
|---|---|---|
| Broadwall Width Oversize | +25 µm | Center Frequency Shift (+0.3 GHz) |
| Surface Roughness | >1.2 µm | Insertion Loss Increase (up to 0.5 dB/m) |
| Corner Radius Error | +0.1 mm | Higher Order Mode Excitation |
A brand-new carbide end-mill might hold tolerance for the first 50 units, but after that, the tool diameter can wear down by 5-10 µm, requiring constant compensation or tool replacement to avoid gradual dimension drift. This is why many high-volume shops implement automated in-process probing that checks critical dimensions every 10-15 parts, adjusting the machine offsets in real-time. The goal is to keep all dimensions within a ±8 µm window with a CpK value greater than 1.67 for process stability.
Aluminum 6061 is popular, but it has a thermal expansion coefficient of 23.6 µm/m·°C. This means if the temperature in your factory shifts by 5°C between the morning and afternoon, a 300 mm long waveguide can expand or contract by over 35 µm, pushing it out of spec. That’s why temperature-controlled workshops, held at 20°C ±1°C, are non-negotiable for precision shops. The cost of such environmental control adds roughly 10-15% to the overhead, but it prevents a massive scrap rate.
Material Selection Challenges
While pure silver offers the highest conductivity at 108% IACS, it’s prohibitively expensive and soft. Therefore, aluminum alloys like 6061 (50% IACS) are the default choice for many commercial applications, offering a good balance. But for base station antennas requiring the lowest loss, oxygen-free copper (C10100) with 101% IACS is chosen, even though it costs ~40% more than aluminum and is significantly heavier. The payoff is a 15-20% reduction in insertion loss, which is critical for 5G mmWave systems operating at 28 GHz where losses are inherently high. The surface roughness of the material is equally critical; a smooth finish below 0.8 µm Ra is mandatory. Electromagnetic waves travel in the top 2-3 micrometers of the conductor surface at high frequencies, so a rough surface can increase effective resistance and scatter signals, boosting loss by 0.1 to 0.3 dB per meter.
- Coefficient of Thermal Expansion (CTE): Aluminum (6061) expands at 23.6 µm/m·°C. For a 300 mm long antenna, a 40°C temperature swing causes a ~280 µm length change, potentially detuning the frequency. Copper expands less (16.5 µm/m·°C), making it more stable but harder to interface with aluminum structures.
- Machinability and Cost: Aluminum is easy to machine, allowing for high feed rates and tool life of 50-60 parts per tool. Copper is gummy and abrasive, reducing tool life to 20-25 parts and increasing machining time by ~25%, adding 15% to the total part cost.
- Plating and Finishing: Bare aluminum must be plated for corrosion protection and soldering. A typical 5 µm silver plating adds $8-12 to the part cost and requires strict process control. Any porosity in the plating leads to rapid oxidation, increasing loss over time.
- Weight Constraints: In aerospace, every gram counts. Aluminum’s density is 2.7 g/cm³, making it a lightweight winner. Copper (8.96 g/cm³) is often too heavy, forcing a switch to even more expensive beryllium copper or advanced composites.
- Thermal Management: High-power radar waveguides handling kWs of power need to dissipate heat. Copper’s thermal conductivity (400 W/m·K) is roughly double that of aluminum (205 W/m·K), making it the only choice to prevent overheating and deformation.
It’s a compromise, often calculated to the decimal point on performance versus a $0.50 per unit cost saving. Prototyping with at least 2-3 material options is standard to gather real-world data on loss and durability before locking in a decision for a production run of 100,000 units.
Signal Loss Management
Every 0.1 dB of unnecessary loss translates directly into reduced range, higher power consumption, and weaker signal strength. For a 5G mmWave antenna operating at 39 GHz, total insertion loss must typically be kept below 1.5 dB to be viable, making the management of every fractional dB a critical financial and engineering exercise.
Losses are cumulative and come from three main areas: conductor (or ohmic) loss, dielectric loss (if present), and radiation loss. Conductor loss is dominant in metal waveguides, and it’s where most of the battle is fought. It’s calculated by the formula:
Loss (dB/m) = (Rs / (b * η)) * (1 + (2b/a)*(fc/f)^2) / sqrt(1 – (fc/f)^2)
For instance, silver plating with a surface roughness of < 0.4 µm Ra can achieve an Rs as low as ~6 mΩ/sq at 30 GHz, while a rough aluminum surface (> 1.2 µm Ra) might see Rs values over 10 mΩ/sq, effectively doubling the conductor loss over a 1-meter run.
- Surface Finish is King: A mirror finish isn’t an aesthetic luxury. Polishing the internal waveguide path to a 0.5 µm Ra from a standard machined finish of 1.6 µm Ra can directly reduce attenuation by up to 0.15 dB/m at 24 GHz. This often adds $5-10 to the manufacturing cost per part but is non-negotiable for high-performance applications.
- The Plating Compromise: Silver plating (~0.3 dB/m loss at 28 GHz) is the gold standard for low loss but adds ~15% to the part cost and is susceptible to tarnishing. Electroless Nickel (EN) plating is a common, more robust alternative, but it’s a poor conductor. A 5 µm thick EN layer can add 0.4 dB of loss at the same frequency, effectively wiping out the gains from your careful machining.
- Connection and Interface Loss: Every flange connection is a potential loss point. A misaligned flange with a 0.1 mm gap can introduce 0.2 dB of loss per connection. Using precise CNC-machined flanges with alignment pins and torquing bolts to a exact 8 in-lbs ensures repeatable connections with loss below 0.05 dB each.
- Frequency’s Crucial Role: Loss isn’t linear. It increases dramatically with frequency. A WR-90 waveguide (8.2-12.4 GHz) might have a loss of 0.02 dB/cm, while a WR-15 waveguide (50-75 GHz) sees that figure skyrocket to 0.15 dB/cm. This is why material and surface choices become exponentially more critical as you move from Sub-6 GHz to mmWave designs.
You can’t just fix it in one area. It requires a tight feedback loop between design, material selection, machining, plating, and assembly, with constant Vector Network Analyzer (VNA) testing on 1 out of every 20 production units to ensure the entire process is held within a ±0.1 dB loss tolerance window. The goal is to ship a product where over 98% of the input power is effectively radiated, not lost as heat in the guide.
Complex Assembly Process
Assembling a waveguide antenna is where theoretical design meets physical reality, and it’s often the stage where up to 30% of production yield can be lost if not managed with extreme precision. It’s not just about screwing parts together; it’s about creating a continuous, perfectly aligned, and sealed electromagnetic path where the theoretical performance from your CAD model is preserved in the final product.
A lateral misalignment of just 0.05 mm (50 µm) between two waveguide sections can cause a VSWR increase from 1.2 to over 1.5, leading to reflected power and a measurable drop in efficiency. This is why assembly jigs and fixtures, which themselves are machined to tolerances of ±5 µm, are mandatory. They can add 30,000 to the project’s upfront tooling cost but are essential for volume production of 10,000+ units.
| Assembly Defect | Typical Tolerance Breach | Performance Impact & Cost |
|---|---|---|
| Flange Gap | 0.075 mm gap | ~0.25 dB loss per connection; requires rework ($45 cost) |
| Screw Over-Torque | > 10 in-lbs | Flange warping; VSWR > 1.7; part scrapped ($120 loss) |
| Solder / Epoxy Bleed | 0.5 mm intrusion | Cavity obstruction; frequency shift; 100% scrap ($80 loss) |
| Pin Alignment Error | 0.1 mm offset | Impedance mismatch; requires fixture recalibration ($500 downtime) |
The process itself is a multi-stage marathon. It typically starts with a cleanroom environment (ISO Class 7 or better) to prevent microscopic dust particles from contaminating the waveguide interior. A > 100 µm particle can act as a small antenna, creating passive intermodulation (PIM) and distorting signals. The first step is often a dry fit check using a go/no-go gauge to verify all parts mate within 0.02 mm. Then, components are disassembled for final cleaning in an ultrasonic bath with a specialized solvent for 5 minutes.
- Fastening Protocol: This isn’t guesswork. Each flange connection has a specific torque sequence and value. A common 4-bolt flange requires a cross-pattern torque sequence gradually increased to a final value of 8 in-lbs ±0.5 in-lbs. Using a calibrated digital torque screwdriver is standard. Deviating by +2 in-lbs can warp the flange, creating an irreversible gap.
- Bonding and Sealing: For hermetically sealed units, a specialized silver-loaded epoxy or solder is used. The epoxy must be applied in a precise 0.3 mm wide bead with no gaps or bubbles. Curing is a critical path operation: 60 minutes at 120°C ±5°C. A 10°C lower temperature results in a 50% reduction in bond strength, risking failure in thermal cycling tests.
- In-Line Testing: You can’t wait until the end to test. After sub-assemblies are joined, they undergo an immediate VNA sweep test. This test checks for a VSWR below 1.25 across the entire 2 GHz operational band. Any unit failing this check is moved to a diagnostic station. The goal is to identify the assembly fault within 15 minutes to keep the line moving. This process catches ~95% of defects before final closure.
The entire assembly process for a single complex antenna can take 45-60 minutes of hands-on labor, not including cure times. Automating this is incredibly difficult, which is why skilled technicians commanding salaries of $75,000+ are a critical line item. The goal is to achieve a first-pass yield of 85% or higher, keeping the cost of rework and scrap below 12% of the total manufacturing budget.
Environmental Durability Testing
Environmental durability testing is the brutal, non-negotiable gauntlet that simulates years of real-world abuse in a few weeks, ensuring your product survives for its intended 10-15 year service life. This phase routinely identifies failure modes that design alone could never predict, and it’s where up to 5% of designs go back to the drawing board.
The core of this testing is a series of accelerated life tests defined by standards like MIL-STD-810 and Telcordia GR-487. These aren’t gentle checks; they are designed to apply stress far beyond normal operating conditions to uncover weaknesses. A typical test plan for a base station antenna involves 3 pre-production units undergoing a 6-week battery of tests, consuming over $50,000 in lab time and resources.
| Test Type | Key Parameters & Conditions | Pass/Fail Criteria & Measured Impact |
|---|---|---|
| Thermal Cycling | -40°C to +85°C, 100 cycles, 2°C/minute ramp rate | VSWR shift < 0.2, No physical cracking or seal failure |
| Vibration (Sine & Random) | 5-500 Hz, 5 Grms for 2 hours per axis (X,Y,Z) | No mechanical loosening; VSWR must remain stable within ±0.1 |
| Humidity (Damp Heat) | 85°C / 85% Relative Humidity, 1000 hours continuous | No corrosion on internal surfaces; Insertion Loss increase < 0.3 dB |
| Salt Fog (Corrosion) | 5% NaCl solution, 35°C, continuous spray for 96 hours | No functional degradation; superficial corrosion permitted only on external hardware |
Aluminum expands at 23.6 µm/m·°C, while stainless steel hardware expands at ~17 µm/m·°C. Over 100 cycles across a 125°C temperature range, this mismatch creates shear stresses that can crack solder joints or break epoxy seals. A failure here, discovered after cycle 75, means a full redesign of the mechanical interface, a 12-week project delay, and a $25,000 tooling revision.
Applying 5 Grms of random vibration for 2 hours is equivalent to years of field exposure. This test exposes poorly torqued screws that can loosen, causing VSWR to fluctuate by more than 0.3. It also reveals micro-cracks in PCB feedlines that might only show up as a 0.1 dB increase in loss initially but would lead to a complete failure after 2 years in the field. The 85/85 damp heat test is a relentless assault on the plating and seals. The goal is to drive moisture through any microscopic pore in the coating to see if it causes internal corrosion. A 0.5 dB loss increase after 500 hours is a major red flag, indicating the silver plating is too thin or porous and will not last the promised 15-year lifespan.
