Phased array antennas are categorized into four main types: passive, active, hybrid, and digital. Passive arrays use phase shifters for beam steering but lack amplification, offering 20-30 dB gain. Active arrays integrate amplifiers per element, enabling dynamic beamforming with 40-50 dB gain and <1° precision. Hybrid arrays combine analog phase shifters with digital control, balancing cost and performance (30-40 dB gain). Digital arrays use full digital beamforming, allowing multi-beam operation with 50+ dB gain but require high power (100W+ per element). Active arrays dominate in radar (e.g., Aegis SPY-1) due to their agility, while digital arrays excel in 5G base stations.
Table of Contents
Basic Types and How They Work

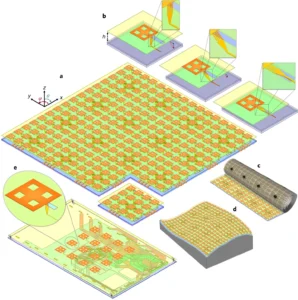

Phased array antennas are used in everything from 5G networks to military radar, but not all designs work the same way. The four most common types—passive, active, hybrid, and digital beamforming—vary in cost, power efficiency, and performance. For example, a passive phased array might cost 500–2,000 per unit and operate at 70–85% efficiency, while an active array can exceed 90% efficiency but costs 3,000–10,000+ due to integrated amplifiers. Digital beamforming, used in advanced systems like 5G mmWave (24–40 GHz), offers sub-1° beam steering accuracy but requires 10–50% more power than analog alternatives. Understanding these differences helps engineers pick the right antenna for radar (1–18 GHz), satellite comms (4–30 GHz), or Wi-Fi (2.4/5 GHz) without overspending.
Passive Phased Arrays
Passive phased arrays use a single transmitter/receiver with phase shifters to steer beams. They’re common in weather radar (S-band, 2–4 GHz) and cost 60–80% less than active arrays. However, their efficiency drops to 70–85% at high scan angles (±45°), and beam agility is slower (10–100 ms response time). A typical passive array for air traffic control (L-band, 1–2 GHz) might weigh 50–200 kg and consume 200–800 W, making them bulky for mobile use.
Active Phased Arrays
Active arrays embed amplifiers (1–10 W per element) directly into each antenna, boosting gain by 3–6 dB over passive designs. Military radars like the AN/SPY-6 (X-band, 8–12 GHz) use this tech to track 200+ targets at 500 km range with <0.1° beam error. Efficiency stays above 90% even at ±60° scans, but power consumption jumps to 1–5 kW for a 1m² array. Prices range from 3,000–15,000 per square meter, limiting use to high-budget projects.
Hybrid Arrays
Hybrid designs mix passive phase shifters with 4–16 active modules to cut costs by 30–50% versus full active arrays. A C-band (4–8 GHz) hybrid array might cost 1,500–4,000/m², weigh 20–80 kg, and deliver 85–92% efficiency. These are popular in satellite comms, where 500 MHz bandwidth and ±50° scanning are enough. Latency improves to 1–10 ms, but beam granularity remains coarser (2–5° resolution) than all-digital options.
Digital Beamforming
Fully digital arrays, like those in 5G base stations (28 GHz mmWave), assign 1 transceiver per antenna element, enabling <1° beamwidth and nanosecond-level steering. But this demands 200–400 W per 64-element panel and raises costs to 5,000–20,000/m². The payoff is multi-gigabit speeds (1–3 Gbps per user) and zero phase drift—critical for massive MIMO (128–256 elements). For comparison, analog arrays at 3.5 GHz max out at 500 Mbps with 2–3° error.
Key Features of Each Design
Phased array antennas vary widely in performance, cost, and complexity—so picking the right one means weighing tradeoffs. A passive array might cost 800/m² but lose 15–20% efficiency at wide scan angles, while an active array maintains >90% efficiency but demands 5,000–$10,000/m² and 1.5 kW power. Hybrids strike a middle ground, cutting costs by 30–40% versus active designs while keeping 85–90% efficiency, and digital beamforming pushes 5G mmWave speeds to 3 Gbps but requires 200–400 W per 64-element panel. Below, we break down the critical specs that define each type.
Passive phased arrays are the simplest and cheapest, with phase shifters doing all the beam steering. They work well for fixed or slow-moving targets, like weather radar (S-band, 2–4 GHz), where scan speeds of 10–100 ms are acceptable. Efficiency drops from 80% at 0° to 65% at ±45°, and power consumption stays low (200–800 W for a 1m² array). But with no built-in amplification, gain is limited to 20–25 dBi, and beamwidths are wider (5–10°), making them poor for high-precision tracking.
Active phased arrays integrate 1–10 W amplifiers per element, boosting gain to 25–35 dBi and enabling <0.1° beam accuracy. Military radars like the AN/SPY-6 (X-band, 8–12 GHz) use this to track 200+ targets at 500 km range with nanosecond-level agility. The downside? Power jumps to 1–5 kW per m², and costs hit 3,000–15,000/m². Active arrays also handle ±60° scans without efficiency loss, making them ideal for airborne radar (fighter jets, drones) where performance outweighs budget.
Hybrid arrays mix passive phase shifters with 4–16 active modules per panel, balancing cost and performance. A typical C-band (4–8 GHz) hybrid costs 1,500–4,000/m², weighs 30% less than a full active array, and keeps efficiency at 85–92%. Scan speeds improve to 1–10 ms, and beamwidths tighten to 2–5°—good for satellite comms (500 MHz bandwidth) but not for mmWave 5G (needing <1° precision). Power use stays moderate (500 W–2 kW per m²), making hybrids a fit for mid-budget defense or telecom projects.
Digital beamforming arrays assign 1 transceiver per element, enabling independent control of each antenna. This allows 5G mmWave (28 GHz) base stations to hit 1–3 Gbps per user with sub-1° beamwidths and zero phase drift. But the tech demands 200–400 W per 64-element panel and costs 5,000–20,000/m². Digital arrays also support massive MIMO (128–256 elements), but analog alternatives at 3.5 GHz max out at 500 Mbps due to 2–3° beam errors. For high-density urban 5G, the extra cost is justified; for rural broadband, it’s often overkill.
Key tradeoffs at a glance:
- Passive: Cheap (500–2,000/m²) but slow (10–100 ms scans) and inefficient at wide angles (65% at ±45°).
- Active: High performance (<0.1° error, ±60° scans) but expensive (3k–15k/m²) and power-hungry (1–5 kW).
- Hybrid: Mid-cost (1.5k–4k/m²), decent speed (1–10 ms), and efficiency (85–92%), but limited precision (2–5°).
- Digital: Ultra-precise (<1°), fastest (nanosecond steering), but costly (5k–20k/m²) and power-intensive (200–400 W per 64 elements).
Bottom line: If budget is tight and precision isn’t critical, passive or hybrid works. For military or high-speed 5G, active or digital is worth the cost.
Performance in Real-World Use
Phased array antennas don’t just exist in theory—their real-world performance determines whether they succeed in 5G networks, radar systems, or satellite comms. A passive array in a weather radar might scan at 10 RPM with ±45° coverage, but its 65% efficiency at the edges means 15–20% weaker signal strength. Meanwhile, an active array on a fighter jet tracks 10× more targets than a passive system, with <0.1° error even at Mach 2 speeds, but burns 3–5 kW of power—enough to drain a small UAV’s battery in <2 hours. Digital beamforming in 5G mmWave (28 GHz) delivers 3 Gbps speeds, but only within 200–300 meters before signal fade hits >30 dB/km. Here’s how these designs actually perform outside the lab.
Passive arrays dominate cost-sensitive, fixed applications like airport surveillance radar (ASR-11, L-band 1.3 GHz), where scan speeds of 5–12 RPM are enough. Their 70–85% efficiency drops to 60–65% at ±45° beam angles, forcing operators to boost transmit power by 20–30% for reliable detection. In maritime navigation (X-band, 9.4 GHz), a typical 4m² passive array consumes 800 W–1.2 kW, detecting ships at 30–50 km range but struggling with small drones (<1m² RCS) beyond 10 km.
“Passive phased arrays work fine for weather and air traffic control, but if you need to track stealth aircraft or hypersonic missiles, the lack of active amplification becomes a hard limit.” — Radar Systems Engineer, Northrop Grumman
Active arrays solve these limits but introduce new challenges. The AN/SPY-6 naval radar (S-band, 3.1 GHz) handles >200 tracks simultaneously with 1-meter resolution at 200 km range, thanks to 1,000+ T/R modules each pumping out 10 W. But cooling this system requires liquid chilling at 20–30°C, adding 300–500 kg to the ship’s weight. In F-35 fighter jets, the APG-81 AESA radar (X-band, 8–12 GHz) scans at >100° per second, yet 95% efficiency comes at a $4–7 million per unit price tag—10× a passive radar’s cost.
Hybrid arrays bridge the gap in mid-tier applications. A C-band (4–8 GHz) hybrid radar for border surveillance might cover ±50° with 85% efficiency, detecting vehicles at 50–70 km for $1.5–2 million—40% cheaper than a full active array. However, beam switching at 5–10 ms is still too slow for missile interception, where <1 ms is required. Power use stays manageable at 1–2 kW per m², making hybrids viable for mobile ground stations but not for satellites, where every 100 W matters.
Digital beamforming shines in 5G but suffers from physics. A 64-element mmWave panel (28 GHz) delivers 1–3 Gbps to smartphones within 200 meters, but rain attenuation slashes speeds by 15–25% in storms. Base stations need 200–400 W per panel, forcing carriers to space them 200–300 meters apart in cities—3× denser than sub-6 GHz 5G. For military comms, digital arrays like the MUOS satellite system (UHF, 300 MHz) maintain 99.9% link reliability over 16,000 km, but each satellite costs $400–600 million, limiting deployment to 4–6 units worldwide.
Choosing the Right One for You
Picking the right phased array antenna isn’t about finding the “best” one—it’s about matching performance, budget, and real-world constraints. A 500K active array might deliver <0.1° beam error, but if your 5G base station budget is 50K per unit, it’s overkill. Meanwhile, a $1K passive array could work for weather radar (S-band, 2–4 GHz), but its 65% efficiency at ±45° makes it useless for fighter jet radar (X-band, 8–12 GHz). Below, we break down how to choose based on frequency, scan range, power limits, and cost, with real numbers to guide your decision.
| Factor | Passive Array | Active Array | Hybrid Array | Digital Beamforming |
|---|---|---|---|---|
| Cost ($/m²) | 500–2,000 | 3,000–15,000 | 1,500–4,000 | 5,000–20,000 |
| Power (W/m²) | 200–800 | 1,000–5,000 | 500–2,000 | 200–400 (per 64 elements) |
| Efficiency | 70–85% (drops to 65% at ±45°) | >90% (stable at ±60°) | 85–92% | 88–95% |
| Beam Accuracy | 5–10° | <0.1° | 2–5° | <1° |
| Scan Speed | 10–100 ms | <1 ms | 1–10 ms | Nanosecond-level |
| Best For | Weather radar, fixed comms | Military radar, fighter jets | Satellite comms, surveillance | 5G mmWave, massive MIMO |
1. Budget-Driven Choices
If your project has < 2K/m² to spend, passive arrays are the only viable option. A marine radar (X-band, 9.4 GHz) with a 4m² passive array costs 8K and consumes 1.2 kW, detecting ships at 30–50 km. But if you need stealth aircraft tracking, the $15K/m² active array becomes mandatory—even though it triples power use to 3–5 kW.
2. Power and Mobility Constraints
For drones or portable ground stations, hybrid arrays strike a balance. A C-band (4–8 GHz) hybrid weighing 50 kg and using 1.5 kW fits on a mid-size UAV, whereas an equivalent active array would need 3 kW—draining batteries 2× faster. Digital beamforming is a non-starter here; its 200–400 W per 64-element panel works for static 5G nodes but not mobile platforms.
3. Precision vs. Coverage Tradeoffs
In 5G networks, digital beamforming (28 GHz) delivers 3 Gbps speeds but only covers 200–300 meters per node. For rural broadband (sub-6 GHz), a passive or hybrid array covering 5–10 km at 500 Mbps is more practical. Similarly, military radars need active arrays for <0.1° accuracy, but airport surveillance gets by with 5° beams from passive systems.
4. Environmental Factors
- Temperature: Active arrays need liquid cooling (20–30°C) in jets/ships, adding 300–500 kg. Passives run fine on air cooling up to 50°C.
- Signal Obstacles: Digital mmWave (28 GHz) drops 30 dB/km in rain; sub-6 GHz hybrids lose <5 dB/km.
- Size Limits: A 1m² passive array fits on towers; digital 64-element panels are smaller (0.2m²) but need 10× more units for coverage.
