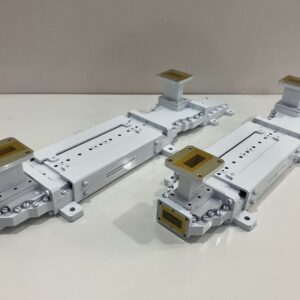

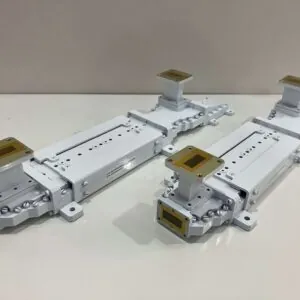

The High Power Differential Phase Shift WG Circulator from Dolph Microwave represents an innovative solution in the field of microwave technology, catering specifically to high-power applications. Designed to handle intense microwave signals, this circulator improves the power capacity of traditional junction circulators by one to two orders of magnitude, making it an essential component for industries requiring high reliability and performance in extreme environments.
Table of Contents
Key Specifications
The High Power Differential Phase Shift WG Circulator is engineered to perform efficiently across a wide frequency band. Below is a detailed table of its specifications:
| Specification | Value |
|---|---|
| Model | DH-100WDPSCIC8.5T9.5PPPA5K |
| Frequency Range | 8.5 – 9.5 GHz |
| VSWR (Max) | ≤1.2:1 |
| Insertion Loss | <0.3 dB |
| Isolation | ≥23 dB |
| Handling Power | 20.0 kW Peak Power, 5.0 kW CW |
| Waveguide Type | WR90 |
| Flange | FDP100/FBP100 |
| Material | Aluminum |
| Inside Finish | Conductive Oxidation |
This circulator’s low insertion loss and high isolation make it highly efficient, while its high peak power handling of 20 kW makes it suitable for demanding environments.
Advantages of the High Power Differential Phase Shift WG Circulator
- Enhanced Power Capacity: Unlike standard junction circulators, this model can manage high-power microwave signals, making it ideal for heavy-duty applications in various industries.
- Wide Frequency Range: Covering a frequency range of 8.5 to 9.5 GHz, this circulator offers versatility across different operational requirements.
- Low Loss, High Isolation: With an insertion loss of less than 0.3 dB and isolation of over 23 dB, the circulator maintains signal integrity, ensuring minimal interference and high performance.
- Durable Construction: Made with aluminum and featuring conductive oxidation for inside finish, the circulator is built to withstand harsh conditions and ensure long-term durability.
Typical Applications
This high-power circulator is suitable for applications that require robust and reliable microwave components, such as:
- Telecommunication: Ideal for satellite and radar systems operating in L-band to U-band frequencies.
- Defense and Aerospace: Withstanding high power and offering reliable signal processing, this circulator is well-suited for defense and aerospace applications.
- Industrial Microwave Systems: For industries utilizing high-power microwaves in heating or material processing, this circulator ensures reliable power handling.
Typical Performance
The typical performance of this circulator can be visualized in a variety of test graphs showing low insertion loss and stable isolation across the specified frequency range, as demonstrated in the data provided.
For more information on this and other high-performance microwave products, please visit the Dolph Microwave website.
