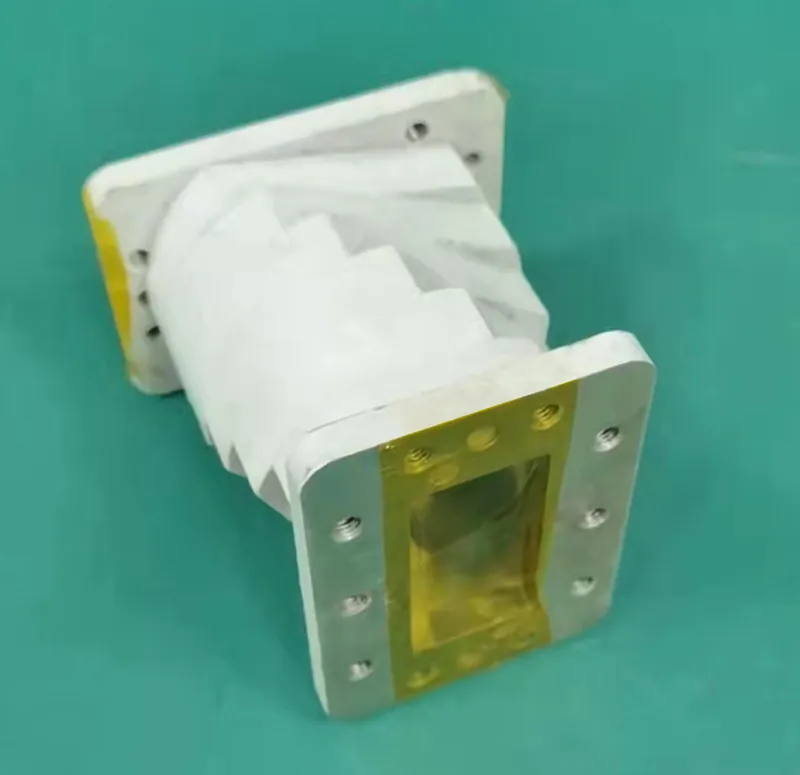

Dolph microwave waveguide step twist provides accurate electrical and mechanical interface. Our compact step-twist exhibits a VSWR of less than 1.05:1 within 10% of the bandwidth. Lower VSWR or increased bandwidth can be achieved by using five-step warping.

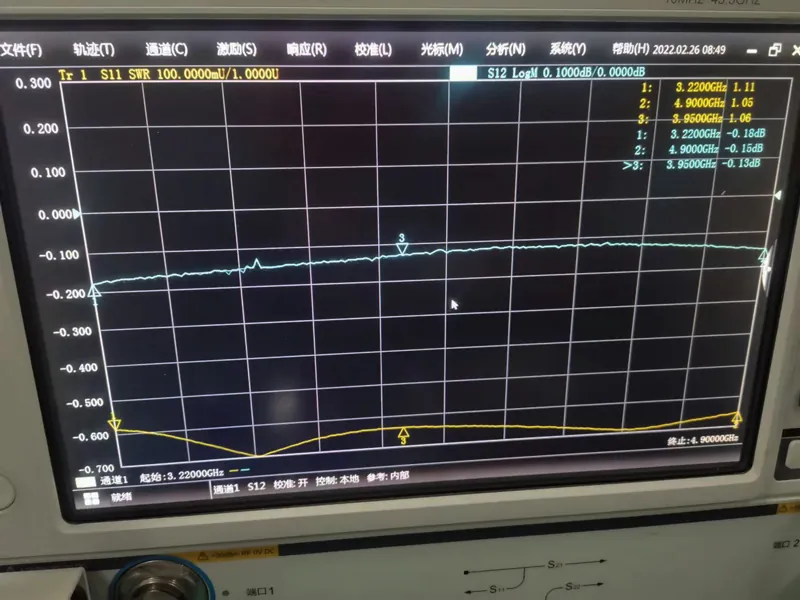

We also offer twist angles of 30, 45 and 60 degrees. Smaller sizes provide continuous or smooth twist. See picture below for frequency range and electrical performance.
For more information please contact us and discuss your needs with our sales engineer.
