【Product Recommendation】Motorized Waveguide Switch

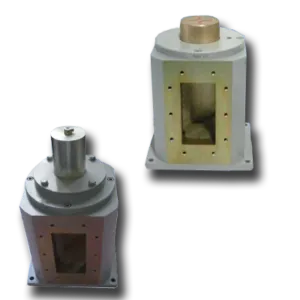

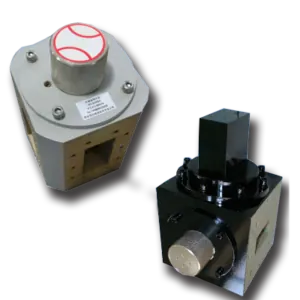

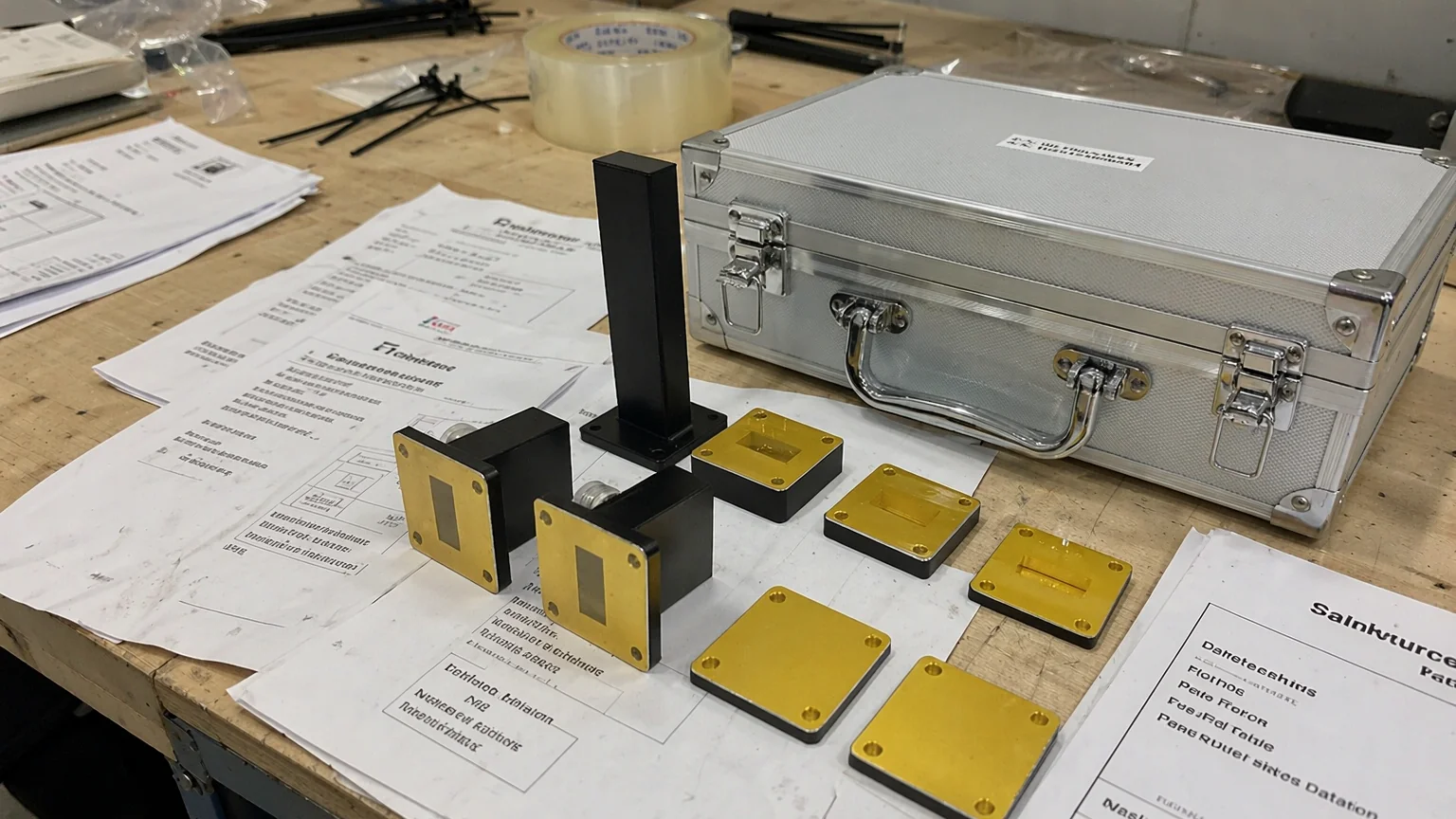

Waveguide switch mainly used for changing the signal channel of waveguide transmission system, according to drive mode which divided to motorized and manual, according to structure type which divided to E type and H type. There are rectangle waveguide switch and double-ridged waveguide switch, frequency band of this series of product model covers 2.60~110GHz. High stability & Excllent precision & Fast response are big advantages of Dolph waveguide switch.

Recommended model: E type motorized waveguide switch

Electrical Specification

Mechanical Specification

Frequency band(GHz)

8.2~12.4GHz

Waveguide Type

BJ100(WR90)

Max VSWR

≤1.15

Flange Type

FBP100

Max Insertion Loss

≤0.30dB

Material

Aluminium

Min Isolation

≥55dB

Paint on Inner

Natural oxidation

Switch Time

Control Mode

≤300ms

Dual power

Paint on Outer

Weight

/

0.535kg

Control Voltage

Output signal

DC24V

2 group on-off signal

Operating Temperature

Storage Condition

-20℃~+70℃

Temperature -40℃~+70℃

Humidity:≤80%
