Dolph Microwave offers a standard product line of teflon/fiberglass high power pressure windows provide a seal within waveguide systems while passing microwave energy freely. The maintained pressure ensures maximum performance, and the seal prevents entry of moisture, dirt, and dust.
These windows covering frequency from 0.3 to 112 GHz, the standard rectangular waveguide range from BJ3 to BJ900, the typical VSWR is 1.25 over the full waveguide bandwidth, and typical insertion loss is 0.2 dB.

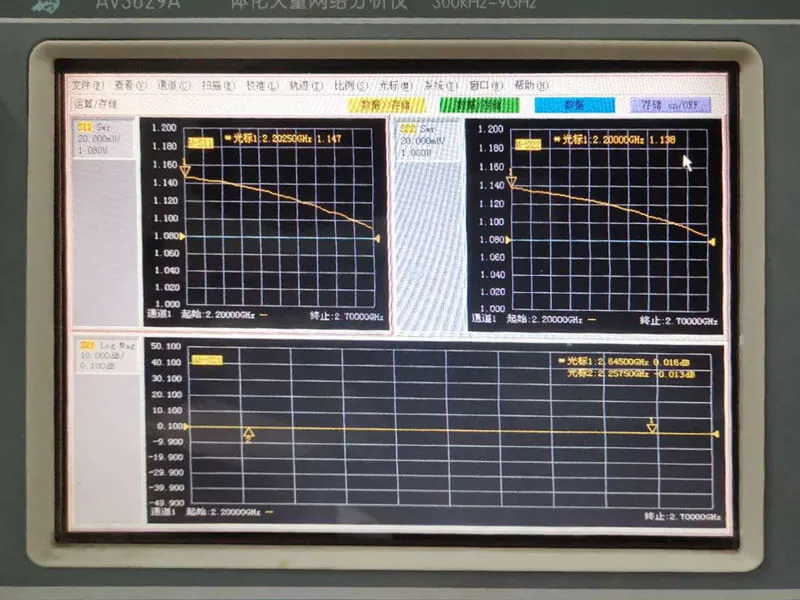

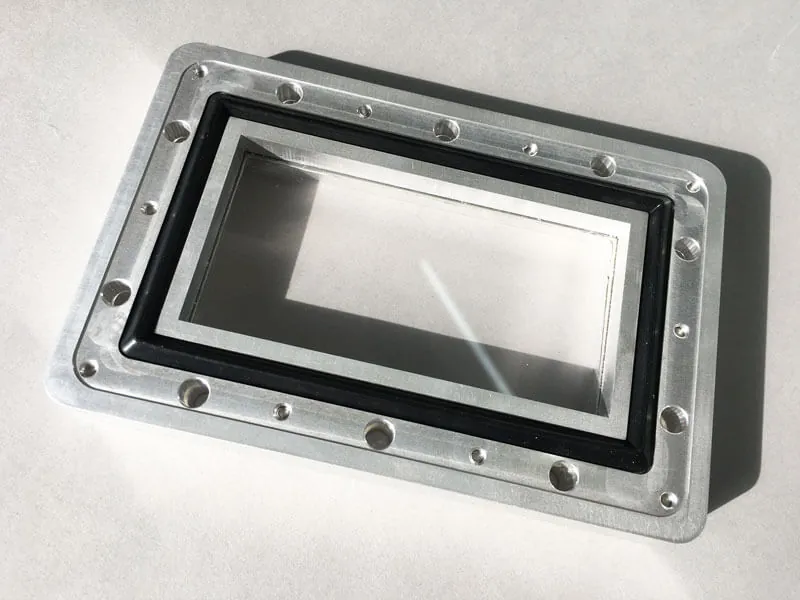

- Model DH-26WPW16
- WG Size: WR340
- Frequency Range: 2.45 GHz ± 25 MHz
- VSWR: 1.5 Max
- Average Power: 10 KW
- Pressure: 30 PSI Max
- Window Material: Quartz
- Flange: FDP26(Cover)/FDM26(Grooved)
- Finish: Chromate
- Material: Aluminum
- Operating Temperature: -20℃-80℃
- Size: 138*95*16 mm
For more information please contact us and discuss your needs with our sales engineer.
