Waveguide Calibration and Verification Kits

Waveguide calibration and verification kits are essential tools for ensuring the accuracy and performance of microwave transmission systems. These kits include a set of precision components that technicians use to calibrate and verify waveguide assemblies, ensuring signal integrity and system reliability without specifying parameters or brands.

Rectangular & double-ridgedSeparate model tables
Full component listAdapters, load, shorts and sections
Original instructionsAnalyzer-specific procedure reference

What each kit contains

Calibration kit

Waveguide-to-coaxial adapters, matched termination, short plates, 1/4λ, 1/8λ and 3/8λ sections, aluminum-alloy case and screws. The catalogue and manual quantity lists remain separate.

Verification kit

Manual scope: BJ-3–BJ-900 and non-standard waveguides. Set: 20 dB and 50 dB attenuators, straight waveguides and a standard reflective load; not automatically included in the calibration list.

Frequency and method

Overview: 1–110 GHz. Individual rows span 0.7–112.0 GHz. Documents describe 12-error correction and vector/scalar analyzers; the manual uses an Anritsu 37369A example.

Supplied data

The manual describes reference parameters at specific frequencies, delivered on floppy disk or paper. Confirm the current format, calibration definitions, certificate/uncertainty requirements and analyzer compatibility.

PRECISION WAVEGUIDE CALIBRATION KITS original specification sheet
Original specification sheet · Open full size

Components and kit layouts

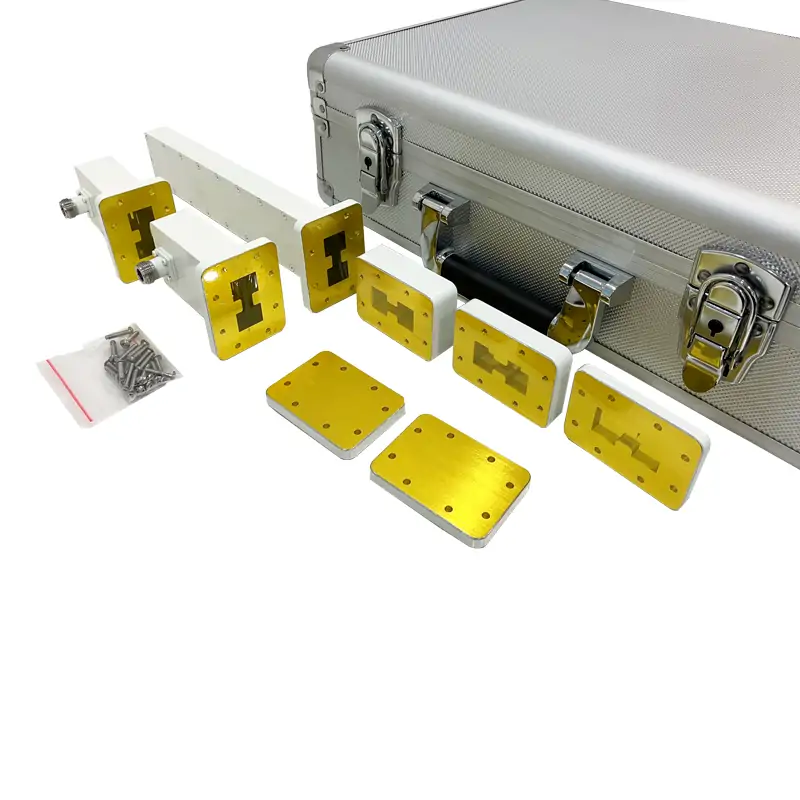

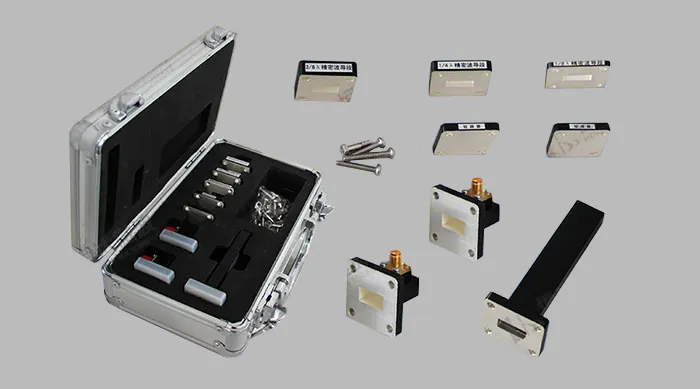

Calibration-kit components shown in the original catalogue.
Calibration-kit components shown in the original catalogue. Open image
Rectangular-waveguide kit illustration.
Rectangular-waveguide kit illustration. Open image
Double-ridged-waveguide kit illustration.
Double-ridged-waveguide kit illustration. Open image

Specifications and configuration details

Precision WG calibration kit includes list — catalogue

No.DescripptionParameterQty
1WG to Coaxial AdapterEach of Male and Female Connector2
2WG Matched TerminationVSWR≤1.031
3WG Short PlateVSWR≥602
41/4λ Precision WG SectionL=1/4λ1
51/8λ Precision WG SectionL=1/8λ1
63/8λ Precision WG SectionL=3/8λ1
7Packing Case of Aluminum Alloy/1
8Screws/1

Precision WG calibration kit includes list — instruction manual

No.DescripptionParameterQty
1WG to Coaxial AdapterEach of Male and Female Connector, VSWR≤1.25:12
2WG Matched TerminationVSWR≤1.031
3WG Short PlateVSWR≥602
41/4λ Precision WG SectionL=1/4λ1
51/8λ Precision WG SectionL=1/8λ1
63/8λ Precision WG SectionL=3/8λ1
7Packing Case of Aluminum Alloy/1
8Screws/

The manual adds an adapter VSWR value and leaves the screw quantity blank. Confirm the ordered kit contents.

Rectangle WG calibration kits

Model NoWG Type EIAFreq Range (GHz)ConnectorFlangeMaterialFinish
DH-9VNAWKNWR9590.7-1.15N FemaleFDPAlChromate Conversion
DH-12VNAWKNWR7700.96-1.46N FemaleFDPAlChromate Conversion
DH-14VNAWKNWR6501.13-1.73N FemaleFDPAlChromate Conversion
DH-18VNAWKNWR5101.45-2.20N FemaleFDPAlChromate Conversion
DH-22VNAWKNWR4301.72-2.61N FemaleFDPAlChromate Conversion
DH-26VNAWKNWR3402.17-3.30N FemaleFDPAlChromate Conversion
DH-32VNAWKNWR2842.6-3.95N FemaleFDPAlChromate Conversion
DH-40VNAWKNWR2293.22-4.90N FemaleFDPAlChromate Conversion
DH-48VNAWKNWR1873.94-5.99N FemaleFDPAlChromate Conversion
DH-58VNAWKNWR1594.64-7.05N FemaleFDPAlChromate Conversion
DH-70VNAWKNWR1375.38-8.17N FemaleFDPCuSilver Plating
DH-84-VNAWKNWR1126.57-9.99N FemaleFBPCuSilver Plating
DH-100VNAWKNWR908.20-12.4N FemaleFBPCuSilver Plating
DH-120VNAWKNWR759.84-15.0N FemaleFBPCuSilver Plating
DH-140VNAWKSWR6211.9-18.0SMA FemaleFBPCuSilver Plating
DH-180VNAWKSWR5114.5-22.0SMA FemaleFBPCuSilver Plating
DH-220VNAWKKWR4217.6-26.72.92 FemaleFBPCuSilver Plating
DH-260VNAWKKWR3421.7-33.02.92 FemaleFBPCuSilver Plating
DH-320VNAWKKWR2826.5-402.92 FemaleFBPCuSilver Plating
DH-400VNAWKVWR2232.9-50.12.4 FemaleFUGPCuSilver Plating
DH-500VNAWK1.85WR1939.2-59.61.85 FemaleFUGPCuSilver Plating
DH-620VNAWK1.85WR1549.8-75.81.85 FemaleFUGPCuSilver Plating
DH-740WNAWK1.0WR1260.5-91.91.0 FemaleFUGPCuSilver Plating
DH-900WNAWK1.0WR1073.8-112.01.0 FemaleFUGPCuSilver Plating

Double Ridge WG calibration kits

Model NoWG type EIAFreq Range (GHz)ConnectorFlangeMaterialFinish
DH-84DRVNAWKNWRD840.84-2.0N FemaleFPAlChromate Conversion
DH-150DRVNAWKNWRD1501.5-3.6N FemaleFPAlChromate Conversion
DH-200DRVNAWKNWRD2002.0-4.8N FemaleFPAlChromate Conversion
DH-250DRVNAWKNWRD2502.6-7.8N FemaleFPAlChromate Conversion
DH-350DRVNAWKNWRD3503.5-8.2N FemaleFPAlChromate Conversion
DH-475DRVNAWKNWRD4754.75-11N FemaleFPCuSilver Plating
DH-500DRVNAWKSWRD5005.0-18SMA FemaleFPCuSilver Plating
DH-580DRVNAWKSWRD5805.8-16SMA FemaleFPCuSilver Plating
DH-650DRVNAWKSWRD6506.5-18SMA FemaleFPCuSilver Plating
DH-750DRVNAWKSWRD7507.5-18SMA FemaleFPCuSilver Plating
DH-700DRVNAWKSWRD7007-18.5SMA FemaleFPCuSilver Plating
DH-1100DRVNAWKKWRD110011-26.52.92 FemaleFPCuSilver Plating
DH-1800DRVNAWKKWRD180018-402.92 FemaleFPCuSilver Plating

The PDF prints the second and third column headings in the opposite order to their cell contents. The actual waveguide identifiers and frequencies are retained here under their corresponding labels; the original page is included below.

Drawings and original documents

PRECISION WAVEGUIDE CALIBRATION KITS

Download PDF
View original pages (3)

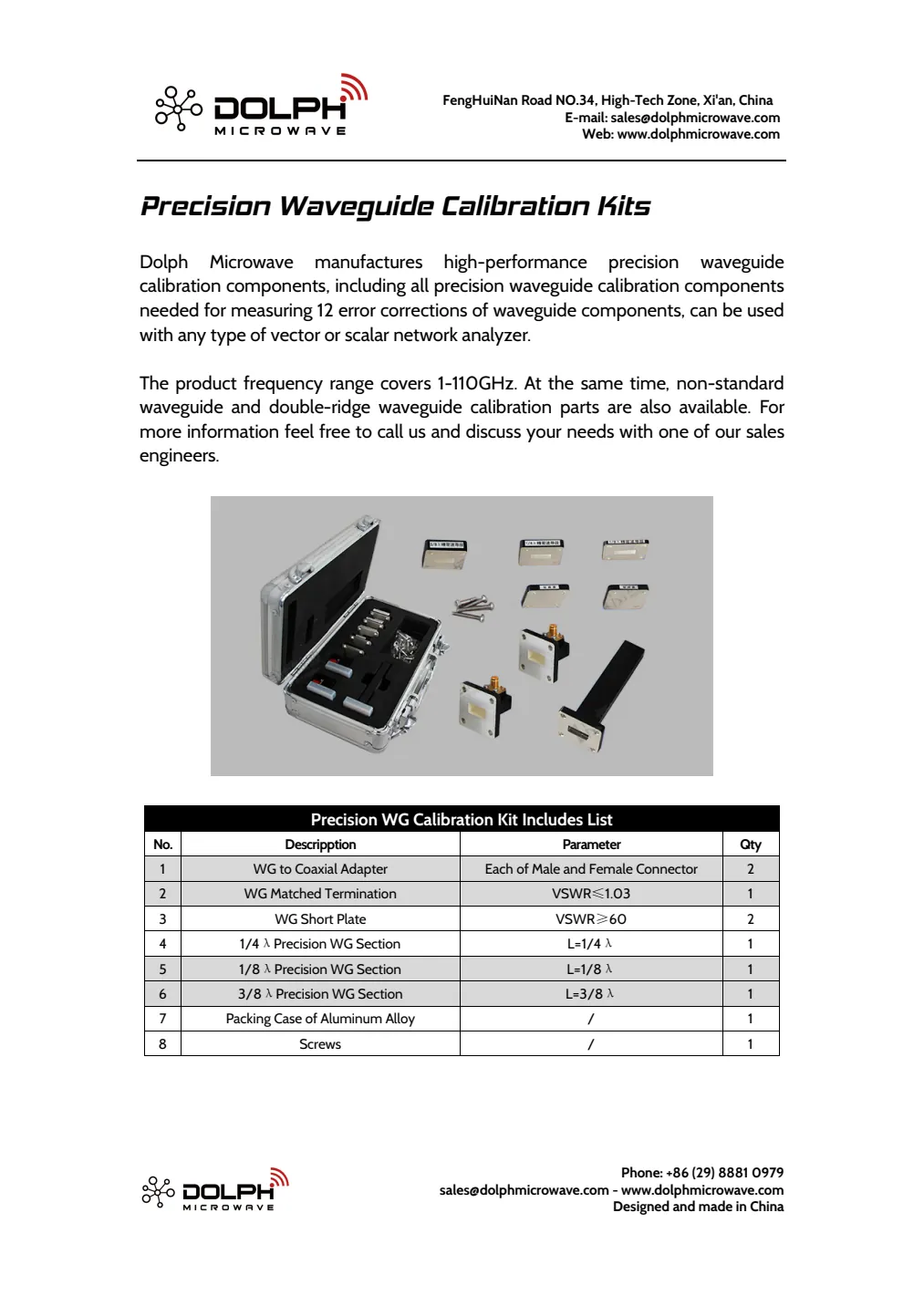

PRECISION WAVEGUIDE CALIBRATION KITS — original page 1, including all tables and drawing annotations
Original document, page 1. Open the image for full-size details.

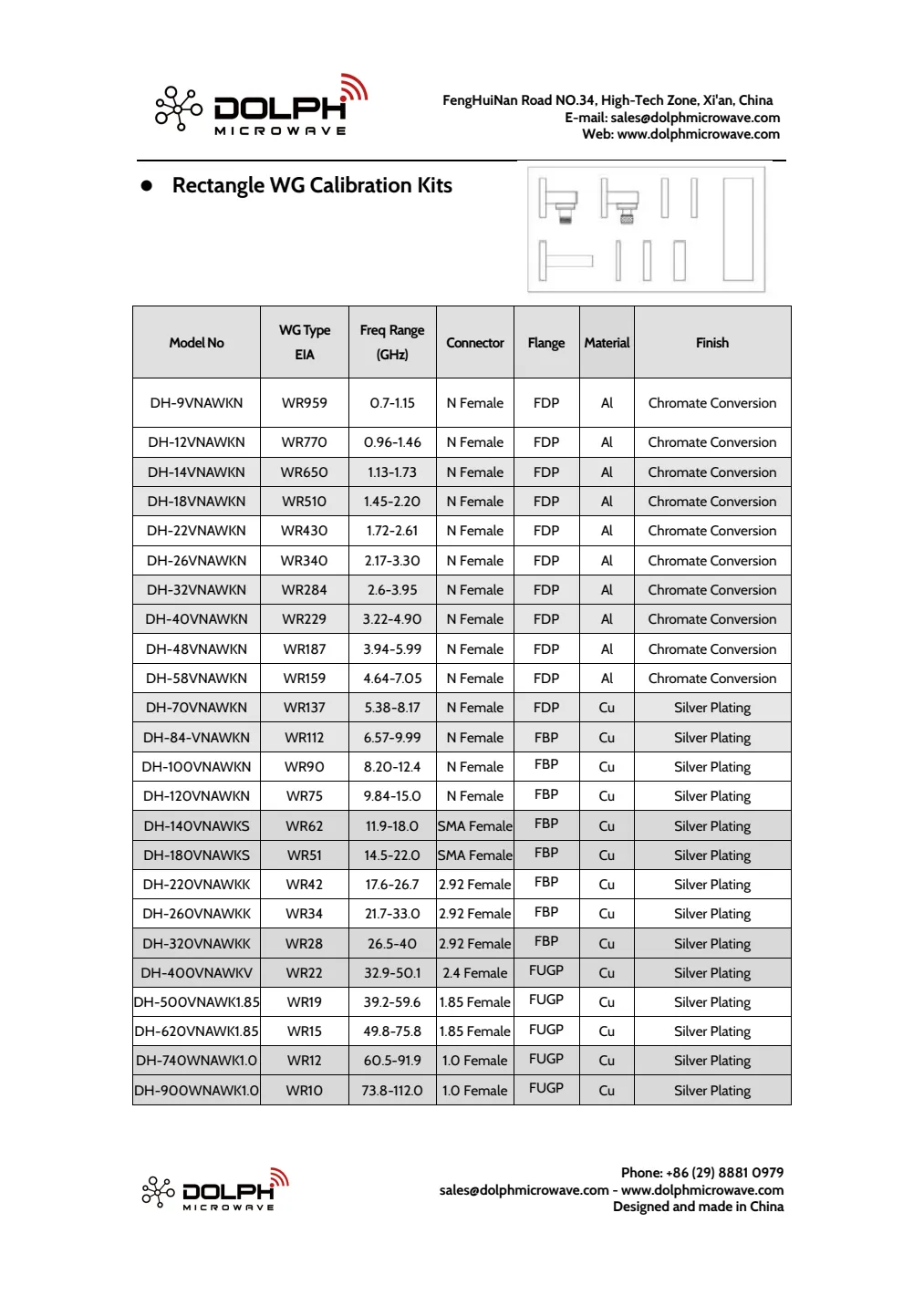

PRECISION WAVEGUIDE CALIBRATION KITS — original page 2, including all tables and drawing annotations
Original document, page 2. Open the image for full-size details.

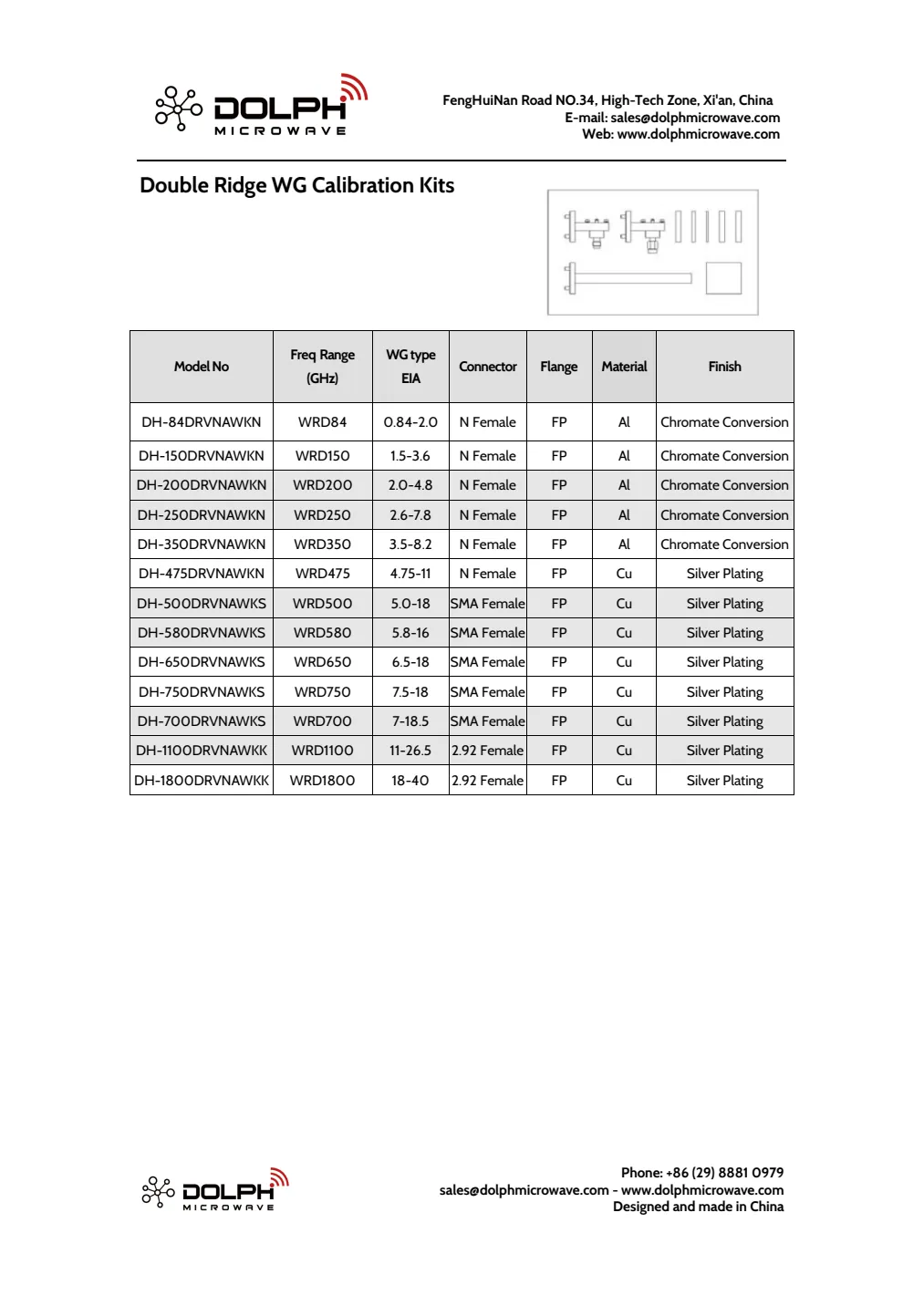

PRECISION WAVEGUIDE CALIBRATION KITS — original page 3, including all tables and drawing annotations
Original document, page 3. Open the image for full-size details.

WAVEGUIDE CALIBRATION KIT INSTRUCTION MANUAL

Download PDF

Twelve-page source manual. It uses an Anritsu 37369A example; confirm the procedure and calibration definitions for your analyzer.

Include these details in your inquiry

  • Waveguide size and measurement frequency range
  • Exact flange and connector interfaces
  • Analyzer manufacturer and model
  • Intended calibration method
  • Required calibration definitions and verification scope
  • Component quantities and documentation requirements
